Zero 100FT Mini Split Line Set with ASTM Thickened Copper Tubing and Triple-Layer White Insulation for Canadian HVAC Projects
Zero 98.5FT Mini Split Line Set Specifications: 1/4 inch and 3/8 inch O.D. ASTM Thickened Copper Tubing with Pre-Flared Brass Nuts for Long-Distance HVAC Runs
Zero 100FT Mini Split Line Set with ASTM Thickened Copper Tubing and Triple-Layer White Insulation for Canadian HVAC Projects
Zero 98.5FT Mini Split Line Set Specifications: 1/4 inch and 3/8 inch O.D. ASTM Thickened Copper Tubing with Pre-Flared Brass Nuts for Long-Distance HVAC Runs
BBS

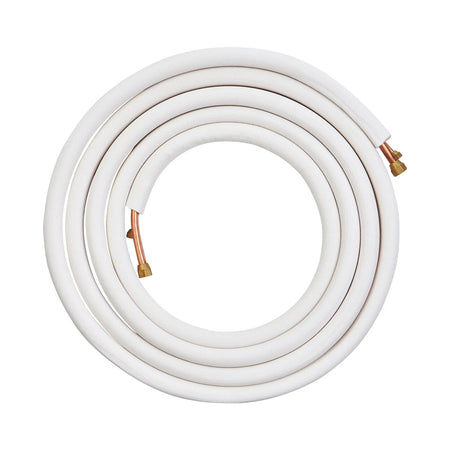

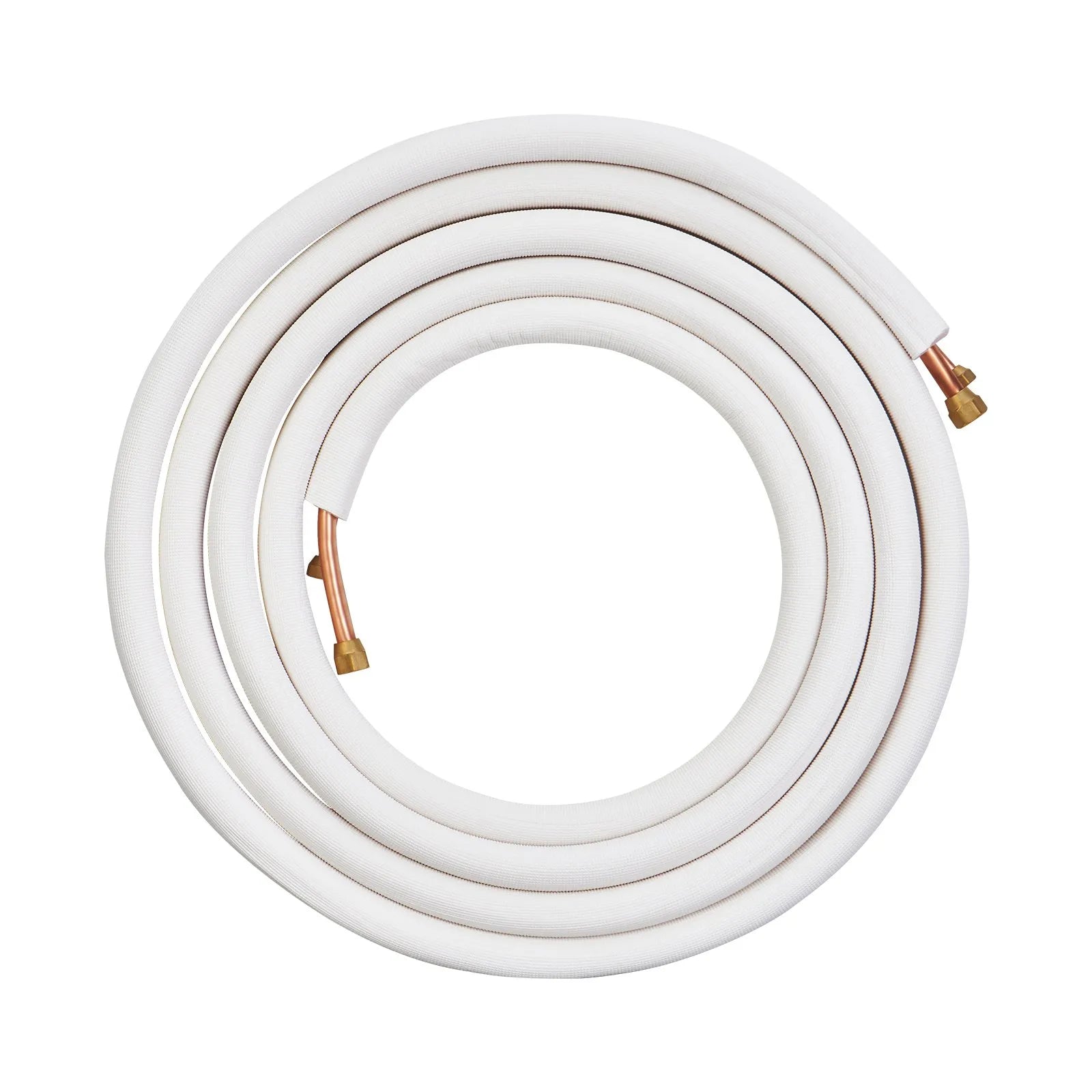

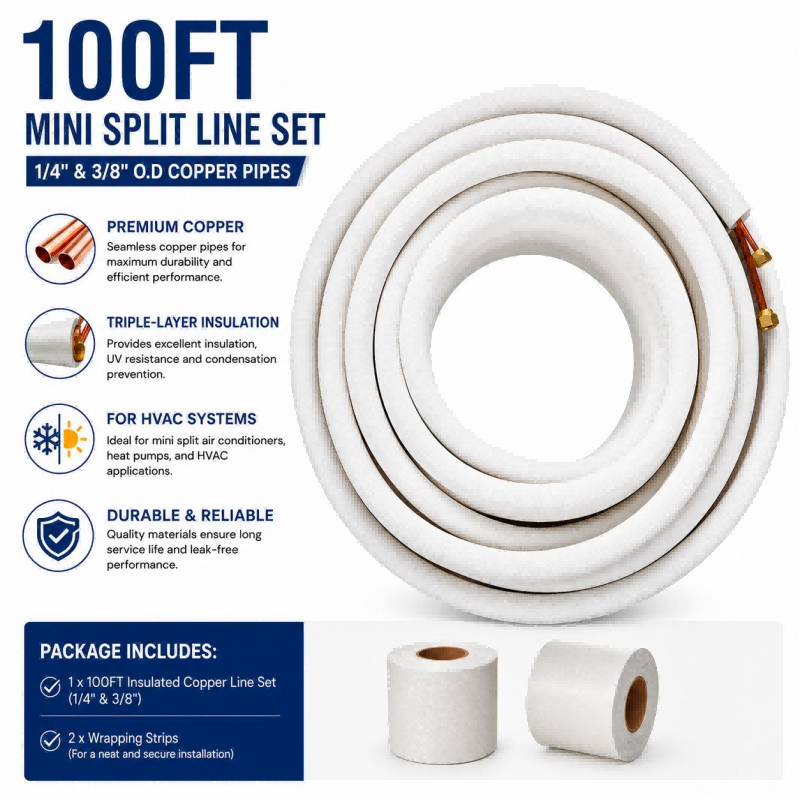

Zero 100FT Mini Split Line Set, 1/4" & 3/8" O.D Copper Pipes Tubing and Triple-Layer Insulation, for Mini Split Air Conditioning Refrigerant or Heating Pump Equipment & HVAC with Wrapping Strips.

In stock
No reviews
Usually ships within 5-15 days, unless there is a special requirement or a very large purchase order.
$420.00
📄 Need a quote instead? Add items to cart, then use the Request a Quote for This Cart button at checkout.
Alex — BBS Advisor
Ask our AI Advisor
Instant answers · Trade pricing · Expert advice
Alex is thinking…
💬
Continue this conversation Get trade pricing · Ask follow-ups · Request a quote
→
🏗️ Builder-focused advice
🍁 Canadian certified products
📦 Volume pricing available
Product details
  • Vendor BBS
Helpful documents
  • Vendor BBS

Would you like to inquire about a wholesale purchase?

Request A Quote

Register Membership

Description Shipping information Reviews (0)

Engineering Highlights

98.5FT MAX SPAN

Industrial-grade 30m length. Allows for seamless connection between indoor and outdoor units in high-rise condos or deep-structured commercial layouts without joints.

THICKENED ASTM COPPER

Utilizes thickened pure copper tubing compliant with ASTM standards. Superior toughness and bendability prevent flattening or breaking during tight-corner routing.

TRIPLE-LAYER THERMAL SHIELD

Enhanced 3-layer embossed white insulation. Offers superior UV resistance, anti-aging properties, and pressure protection for the internal copper lines.

98.5FT Line Set Technical Data
Parameter Specification
Pipe Length 98.5 FT (30 Meters)

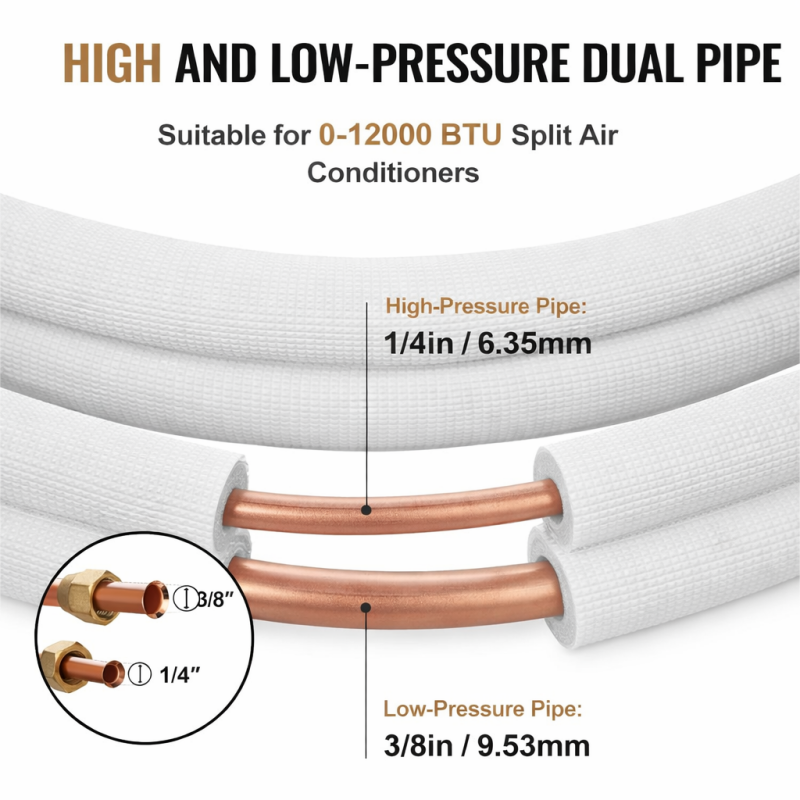

Tube Diameters (O.D.) 1/4" (High Pressure) & 3/8" (Low Pressure)
BTU Compatibility 0 - 12,000 BTU (Standard 1-Ton Mini Splits)
Material Type ASTM Standard Pure Copper (Thickened Wall)
Insulation Color White (Embossed surface, 3-Layer Structure)
Connector Hardware Thickened Brass Nuts + Fluoroelastomer-Coated Flare Mouths
*Note: Please verify your A/C unit's connection port size before ordering. cUL/ASTM compliant materials.

Professional HVAC Connection Solution

The 98.5FT Mini Split Line Set is engineered for contractors and developers who require reliable, long-distance refrigerant routing without compromising on thermal efficiency. Built with premium pure copper that resists pulling and bending, this kit is specifically designed for Canadian home, office, and restaurant installations where long runs between indoor and outdoor units are mandatory.



BBS Canada Engineering Compliance

ASTM B280 COMPLIANT 99.9% PURE COPPER UV RESISTANT

Technical & Installation FAQ

Will the copper tube flatten when bending around corners?
No. Unlike budget line sets, Zero uses thickened copper wall thickness that meets ASTM standards. This provides the necessary hardness to resist flattening while maintaining the flexibility needed for manual routing without a tube bender.
What are the benefits of the 3-layer insulation cotton?
The 3-layer structure provides superior UV protection and thermal retention compared to standard double-layer alternatives. This prevents condensation buildup and protects the copper from long-term environmental degradation in Canadian climates.
Is this line set pre-flared with nuts?
Yes. The kit comes with high-hardness thickened brass nuts and precision-coated flare mouths, ready for a standard 4-step quick installation between your indoor and outdoor units.

HVAC National Supply Desk

Ordering for a multi-unit development or commercial facility in BC? Access trade-only volume pricing and standardized logistics for major project HVAC accounts.

Trade Line: +1 604-356-7999

Request Project Quote
