Warren

Warren Tilt & Turn Window Canada – PRO-75 Aluminum Casement (Triple Glazing, German Hardware)

Name: Warren Tilt & Turn Window Canada – PRO-75 Aluminum Casement (Triple Glazing, German Hardware)
Brand: Warren
SKU: 14874986283373
Availability: InStock
Rating: 5.0 (1 reviews)

In stock

5.0 1 review

Estimate $168/sfqt Final price subject to requirements

Our windows and doors are priced based on size, configuration, and performance requirements.

✔ Builder Price: available

✔ Triple Pane: Available

Get a custom quote tailored to your project.

Triple Glazed is ready for Canadian Climate
Enhanced Thermal Performance & Energy Efficiency

No obligation

Reply within 1-2 business days

Volume pricing available

Estimation Desk

Width (in)

Height (in)

Budget Estimate:

Get a Free Quote Call +1 (604) 356-7999

Alex is thinking…

💬

Continue this conversation Get trade pricing · Ask follow-ups · Request a quote

→

🏗️ Builder-focused advice

🍁 Canadian certified products

📦 Volume pricing available

Free Measurement

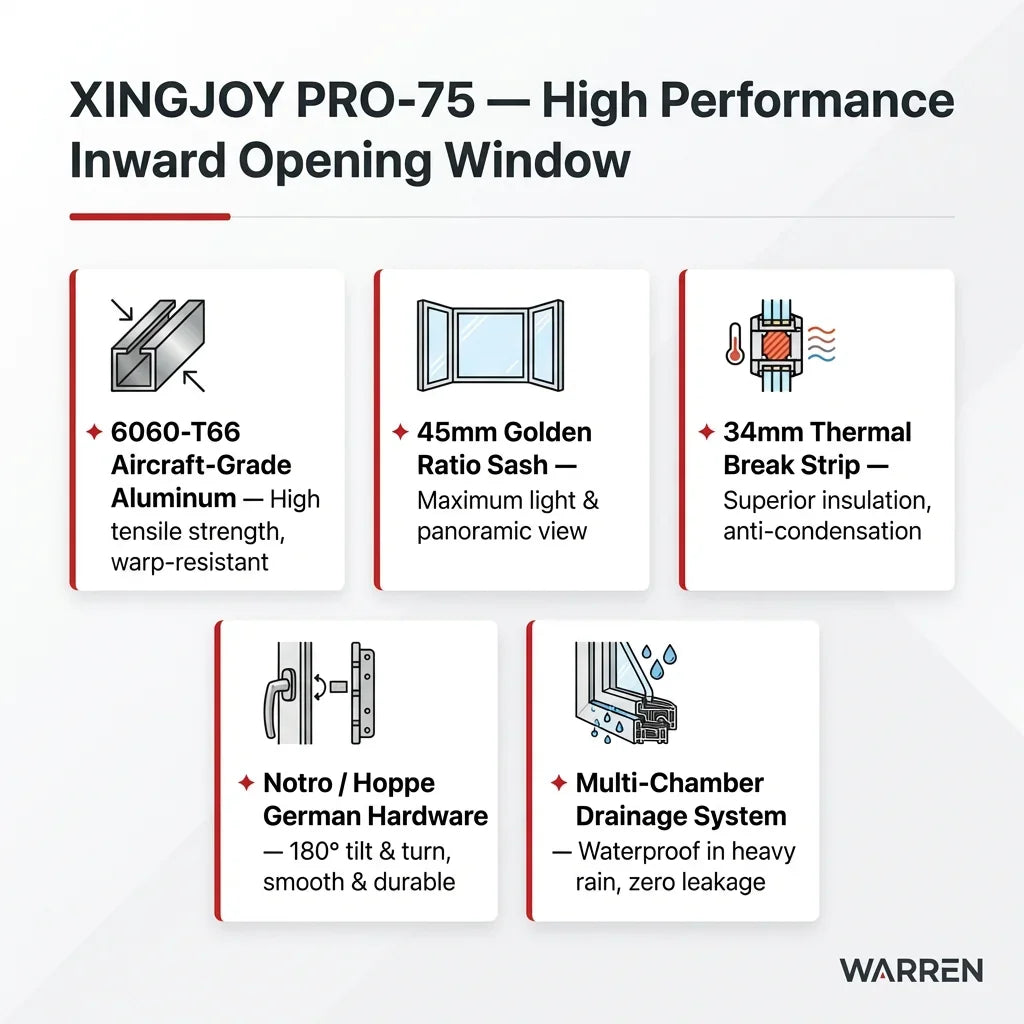

6-Core Engineering Highlights

6060-T66 PRIMARY ALUMINUM

High-precision aviation-grade 6060-T66 alloy. Offers 20% higher structural density and superior wind-load resistance than standard 6063 profiles.

DUAL-ACTION VENTILATION

Innovative European tilt & turn mechanism. Tilt for secure ventilation; turn for maximum airflow and easy maintenance.

PASSIVE HOUSE THERMAL

Multi-cavity thermal strips and triple-pane glazing achieve a BC Step Code 5 compliant K-value of ≤ 1.1 W/(m²·K).

45dB SOUND ATTENUATION

Integrates PVB silent technology to block urban noise, delivering 45dB sound reduction for city projects.

TRIPLE EPDM GASKETS

German-engineered triple-sealing gaskets ensure zero condensation and maximum air tightness in BC's sub-zero winters.

NAFS GRADE 9 RATING

Certified to withstand extreme coastal wind pressure. Advanced structural reinforcement for high-rise stability.

Technical Matrix

Performance Ratings (Standard Compliance)

Air Tightness Grade 8

Water Tightness Grade 6

Wind Resistance Grade 9

Thermal Insulation Grade 7

Sound Insulation Rw ≥ 45dB

System Model	Warren PRO-75 Master (Tilt & Turn)
Frame Material	6060-T66 Aerospace Grade Thermal Break Aluminum
System Depth	75mm Architectural Tilt & Turn Series
Glass Configuration	Triple Pane Ready (Low-E / Argon Gas)
Thermal Value (K)	≤ 1.1 W/(m²·K) (Net-Zero Ready)
Hardware System	Imported European Precision Hardware System
Sealing Solution	Triple-Layer EPDM Automotive-Grade Gaskets
Durability	20+ Years Architecture Life Cycle

Color Palette Options

Matte Black

Jet Black

Space Grey

Champagne Gold

Silver White

Wood Grain

Warren PRO-75 Master system featuring dual-action European opening logic.

Architectural Performance Standards

The Warren PRO-75 Master is the benchmark for high-performance Tilt & Turn windows in the Canadian market.

By utilizing aviation-grade 6060-T66 aluminum and a 75mm system depth, we provide the structural backbone required for large-span tilt-and-turn units. The dual-action mechanism allows for secure night-time ventilation in the 'tilt' position while providing full interior accessibility in the 'turn' position.

Equipped with imported European hardware and EPDM triple sealing, the PRO-75 Master eliminates thermal bridging and satisfies the most demanding requirements of the BC Energy Step Code, making it ideal for both luxury custom homes and high-performance urban developments.

10-YEAR

Frame & Hardware

5-YEAR

Glass & Seals

LIFETIME

Technical Support

Project Support FAQ

Does the PRO-75 meet BC Energy Step Code 5?

Yes. Combined with triple-pane Low-E units, the PRO-75 Master achieves ≤ 1.1 W/(m²·K), satisfying the requirements for net-zero ready construction across British Columbia.

What is the benefit of the Tilt & Turn mechanism?

It provides dual functionality: tilt for secure, draft-free ventilation and turn for full airflow and easy cleaning from the inside, eliminating the need for exterior maintenance.

Do you provide engineering NAFS documentation?

Yes. We provide CAD/PDF shop drawings and NAFS performance certificates to assist our trade partners in the municipal permit and approval process.

National Project Supply Desk

Supplying a luxury residential project or a multi-unit development in British Columbia? Access professional B2B trade pricing and local project support from our Burnaby warehouse.

Request Project Quote

Technical Certification Summary

Detailed performance documentation for Warren architectural systems:

Product Scope

Covers Warren’s premium aluminum windows, including Architect Series fixed, Push Out Series casement, and Engineer Series tilt & turn windows with insect screens.

Core Certifications (NAMI)

Three Structural Certificates issued by NAMI, confirming compliance with AAMA/WDMA/CSA standards (Class CW-PG30/40/50) for design pressure and water resistance.

Performance Testing (Intertek)

Validation of structural performance and wind load resistance for specific product configurations via Intertek test/simulation reports.

Conclusion

This portfolio demonstrates that key Warren aluminum window products have passed rigorous North American structural and performance testing, meeting all stringent market entry requirements.

Precision Requires Time

At British Building Supplies (BBS), we do not sell off-the-shelf retail windows. Every Warren system is bespoke-engineered to your project's exact architectural specs and BC Building Code requirements.

The Engineering & Delivery Roadmap

01 Technical Verification

Days 1-7: Finalization of shop drawings, NAFS performance verification, and engineering approval for your specific BC project.

02 Precision Manufacturing

Days 8-30: High-precision extrusion of 6060-T66 aluminum, assembly of Belgian hardware, and dual-stage quality control testing.

03 Global Logistics & Local Arrival

Days 31-60: Secure international transit, customs clearance, and final inspection at our Burnaby, BC trade warehouse.

Why We Wait for Quality

BC Step Code Compliance: Every unit is checked against thermal performance targets (≤ 1.1 W/m²·K).
Factory-Direct Customization: No "middle-man" retail stock. You get fresh-from-factory engineering with full warranty.
Structural Integrity: 6060-T66 primary aluminum requires specialized aging processes to reach architectural hardness.

Project Planning Note

For BC contractors and developers: We recommend placing orders at the framing stage of your build to ensure windows arrive exactly when the building envelope is ready for glazing.

Burnaby Trade & Logistics Desk

Need an expedited timeline or have a high-volume development project? Contact our local Burnaby team for project-specific logistics support.

Frequently Asked Questions

Does the Warren PRO-75 Master Tilt & Turn Windows Canada – Aluminum Window System, Triple Pane Ready meet the BC Energy Step Code 5 requirements?

Yes. When combined with high-performance triple-pane Low-E units, the Warren PRO-75 Master Tilt & Turn Windows Canada – Aluminum Window System, Triple Pane Ready achieves a thermal K-value of ≤ 1.1 W/(m²·K). This performance level satisfies the most stringent requirements for net-zero ready residential construction under the BC Energy Step Code 5 in British Columbia.

What is the primary benefit of the dual-action European Tilt & Turn mechanism in the Warren PRO-75 Master series?

The Warren PRO-75 Master Tilt & Turn Windows Canada – Aluminum Window System, Triple Pane Ready offers superior European dual-action functionality. The 'tilt' position allows for secure, draft-free ventilation, while the 'turn' position provides maximum airflow and enables easy maintenance and cleaning from the interior, eliminating the need for external access.

Are CAD/PDF shop drawings and NAFS certificates provided for the Warren PRO-75 Master series to support municipal permit applications in BC?

Yes. We support our B2B trade partners by providing comprehensive CAD/PDF shop drawings and NAFS performance certificates for the Warren PRO-75 Master Tilt & Turn Windows Canada – Aluminum Window System, Triple Pane Ready series. This technical documentation is essential for facilitating the municipal permit and building approval process in the City of Vancouver, Burnaby, and throughout the Lower Mainland.

Is the Warren PRO-75 Master Tilt & Turn Windows Canada series fully NAFS and Energy Star certified for the Canadian climate?

Absolutely. The Warren PRO-75 Master Tilt & Turn Windows Canada – Aluminum Window System, Triple Pane Ready series is fully NAFS certified and Energy Star rated. It is specifically engineered to withstand Canadian winters, meeting all BC Building Code requirements for thermal insulation, airtightness, and structural wind load (Grade 9).

What materials are used in the Warren PRO-75 Master Tilt & Turn Windows Canada – Aluminum Window System, Triple Pane Ready series?

We utilize aviation-grade 6060-T66 thermal break primary aluminum combined with multi-layer EPDM compression gaskets. This high-density profile ensures the Warren PRO-75 Master Tilt & Turn Windows Canada series provides exceptional structural stability and an airtight seal that eliminates cold drafts and reduces energy costs.

Do you offer professional measurement and wholesale pricing for the Warren PRO-75 Master Tilt & Turn Windows Canada series?

Yes, we offer free professional on-site measurement for contractors and developers in the Metro Vancouver area. As a factory-direct wholesaler, we provide standardized B2B trade pricing for the Warren PRO-75 Master Tilt & Turn Windows Canada series, alongside local technical support from our Burnaby warehouse.
