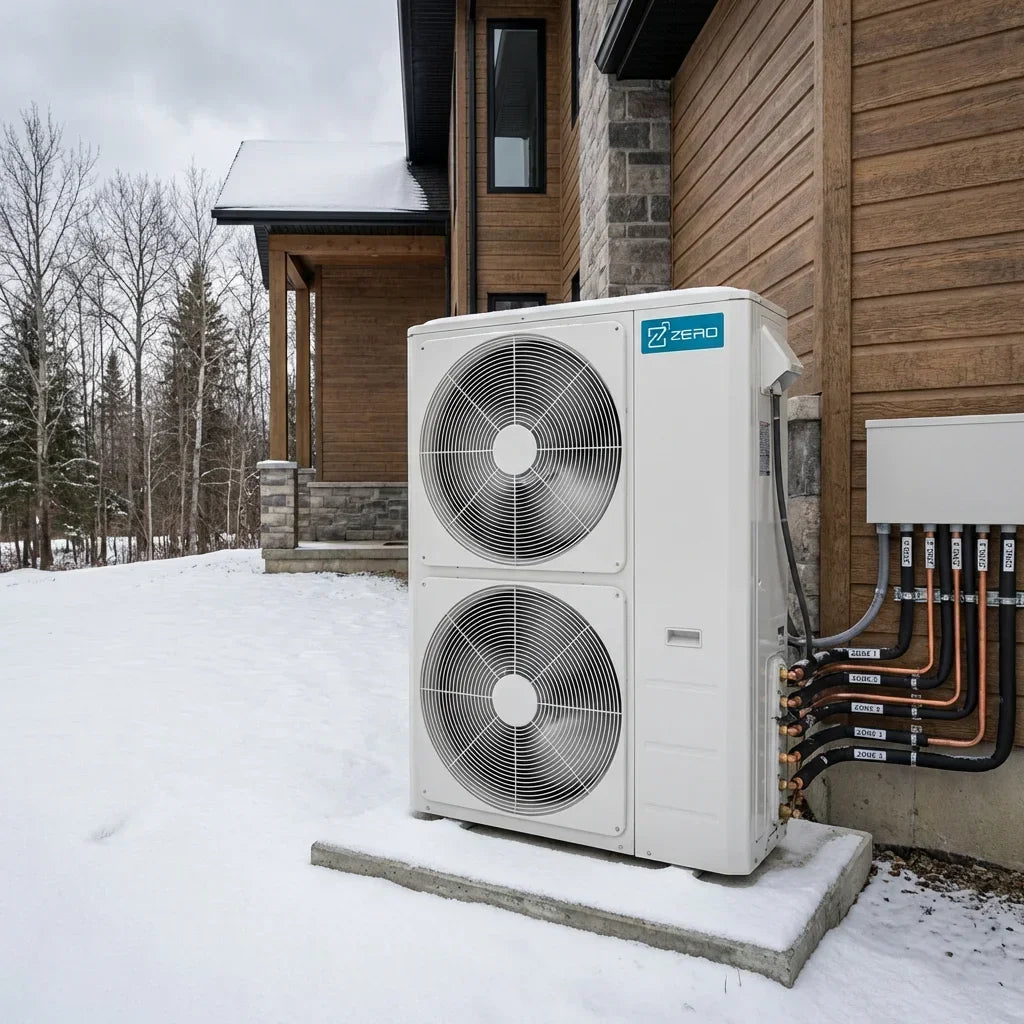

Uncompromising 48,000 BTU heating output engineered for extreme Canadian winters. Sustains reliable operation down to -30°C (-22°F).
Advanced AI algorithms synchronize compressor output for up to 6 rooms, delivering 10% annual energy savings through precision flow control.
Lead-compliant technology with R454B refrigerant. Reduces GWP by 80% compared to R-410A, ensuring long-term project sustainability.
The ZERO Z4S Series outdoor condenser is officially AHRI certified across multiple indoor unit configurations, including ducted, non-ducted, and mixed-zone applications. All published performance ratings are independently verified under AHRI 210/240-2024 standards for both USA and Canadian markets.
Certified for ducted, non-ducted, and hybrid indoor system combinations under independent third-party testing protocols.
Up to 21.3 SEER2 and 10.6 HSPF2 performance ratings engineered for demanding Canadian winter environments.
AHRI-certified system matching supports eligibility pathways for provincial Canadian energy rebate programs.
| Indoor Configuration | AHRI Ref # | SEER2 | HSPF2 | Heating Capacity | Market |
|---|---|---|---|---|---|
| Ducted Indoor Units | 217138410 | 20.40 | 10.60 | 47,000 BTU | USA / Canada |
| Non-Ducted Indoor Units | 217138409 | 21.30 | 10.00 | 48,000 BTU | USA / Canada |
| Mixed Ducted & Non-Ducted | 217138411 | 20.85 | 10.30 | 47,500 BTU | USA / Canada |
Qualifying AHRI-certified configurations of the ZERO Z4S Series may meet efficiency requirements for provincial Canadian heat pump rebate programs, including CleanBC and BetterHomesBC qualifying pathways for high-efficiency electric heat pumps.
Income-qualified households replacing fossil fuel heating systems may qualify for substantial provincial rebate incentives.
Canadian rebate applications typically require approved AHRI indoor and outdoor unit matching documentation.
Rebate eligibility generally requires installation by a registered licensed HVAC contractor participating in approved provincial programs.
Our HVAC specialists can help verify AHRI-certified indoor and outdoor system matches and assist with rebate-ready configuration planning for Canadian provincial programs.
| Specification Item | Technical Data |
|---|---|
| Model Number | Z4SOV-48HDMB-US (Z-PRO Series) |
| System Capacity | 48,000 BTU (4.0 Ton) |
| Zones Support | Up to 6 Independent Zones |
| Efficiency Rating | Up to 22.5 SEER2 / 10.5 HSPF2 |
| Heating Range | Down to -30°C (-22°F) |
| Compressor | Twin Rotary DC Inverter |
| Certifications | Energy Star, AHRI, ETL, cULus |
The optimal tonnage for large Canadian homes requiring 5 to 6 independent zones of comfort without sacrificing heating power.
A primary heating replacement for traditional 4-ton furnaces when paired with high-performance Air Handling Units (AHU).
Delivers reliable heating and cooling capacity tailored for complex layout server rooms or partitioned office environments.

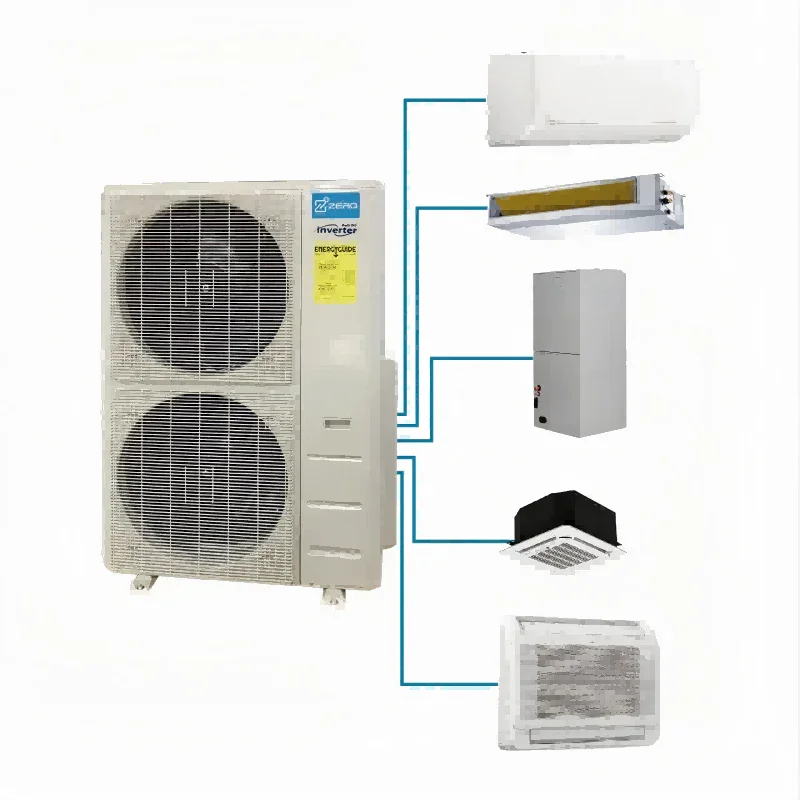

Customize your room-by-room comfort. Match this 48,000 BTU outdoor condenser with up to 6 indoor units to create the ultimate climate solution for large homes.
