Warren

Warren 160 Lift & Slide Doors Canada – Aluminum Patio Door System, Triple Pane Ready

In stock
5.0 1 review
Estimate $188/sfqt Final price subject to requirements

Our windows and doors are priced based on size, configuration, and performance requirements.

✔ Builder Price: available

✔ Triple Pane: Available

Get a custom quote tailored to your project.

Triple Glazed is ready for Canadian Climate
Enhanced Thermal Performance & Energy Efficiency

No obligation
Reply within 1-2 business days
Volume pricing available
Estimation Desk
Budget Estimate:
--
Get a Free Quote Call +1 (604) 356-7999
Alex — BBS Advisor
Ask our AI Advisor About This Product
Instant answers · Trade pricing · Expert advice
Alex is thinking…
💬
Continue this conversation Get trade pricing · Ask follow-ups · Request a quote
→
🏗️ Builder-focused advice
🍁 Canadian certified products
📦 Volume pricing available

Contact us now for a free professional window and door measurement and quote.

Free Measurement

Description Certificate Shipping information Reviews (1)

6-Core Engineering Highlights

6060-T66 PRIMARY ALUMINUM

High-precision aviation-grade 6060-T66 alloy. Offers significantly higher structural density and wind-load resistance than standard 6063 aluminum.

SOBINCO (BELGIUM) SYSTEM

Equipped with Belgian SOBINCO lift-and-slide hardware. Supports heavy panels up to 400kg with effortless finger-tip operation.

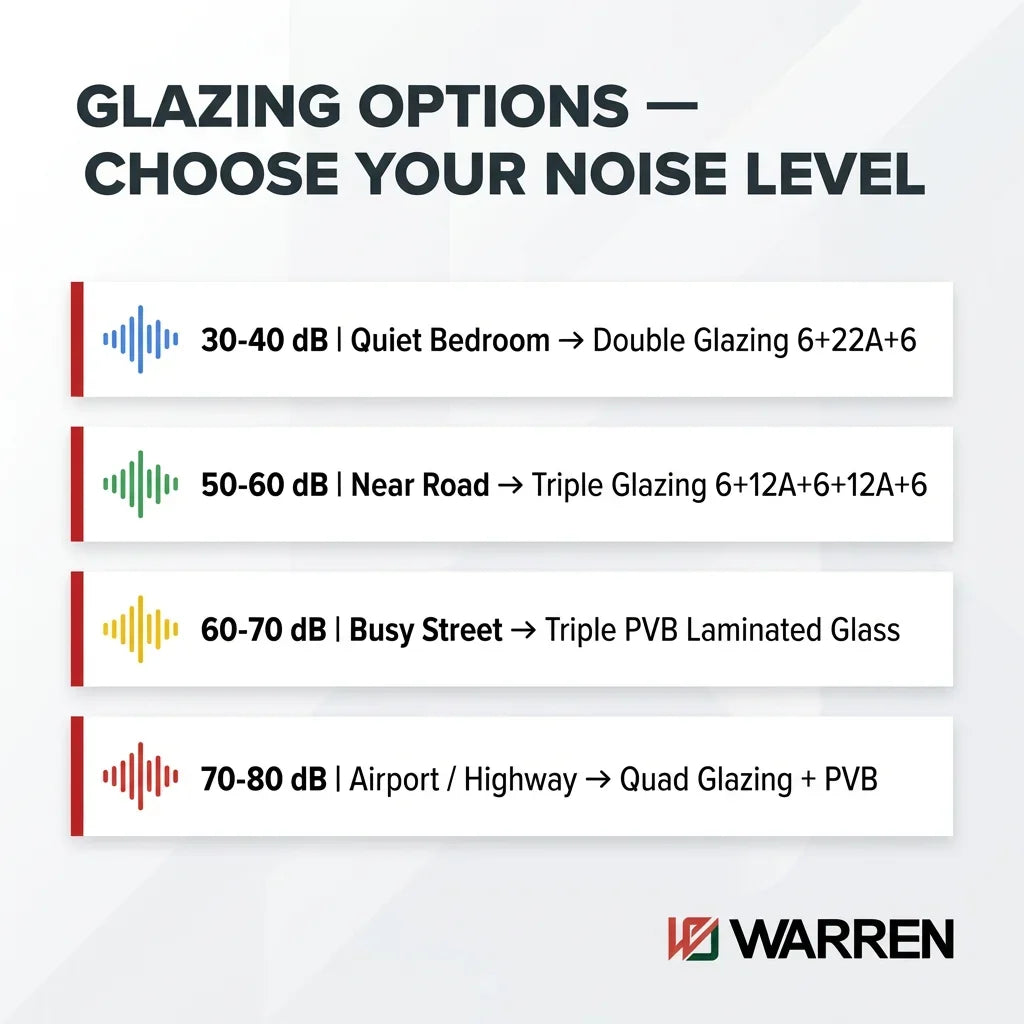

45dB NOISE ATTENUATION

PVB Silent Series technology targets urban frequency noise, delivering an impressive 45-decibel sound reduction for city projects.

PASSIVE HOUSE THERMAL

Multi-cavity PA66 thermal strips and triple-pane glazing achieve a Net-Zero ready K-value of ≤ 1.1 W/(m²·K).

TRIPLE EPDM SEALING

Features automotive-grade EPDM triple-sealing gaskets, providing zero condensation and air tightness in BC's extreme sub-zero winters.

160MM STRUCTURAL ARMOR

Certified NAFS Grade 9. The 160mm system depth provides ultimate stability for oversized panoramic architectural openings.

Technical Matrix

Performance Ratings (BBS Standard)

Air Tightness Grade 8
Water Tightness Grade 6
Wind Resistance Grade 9
Thermal Insulation Grade 7
Sound Insulation Grade 6
System Model Warren Starshine (XingYao) 160 Series
Frame Material Aviation-Grade 6060-T66 Thermal Break Aluminum
Surface Finish Architectural Powder Coating / Anodized / Wood Grain
Glass Configuration Tempered / Laminated / Low-E / Argon Filled
Glass Thickness 5mm – 12mm Panes; Unit Thickness up to 48mm
Hardware System Imported Belgian SOBINCO Lift & Slide System
Sealing Solution Automotive-Grade EPDM Triple Sealing Gaskets
Opening Options 2-Panel / 3-Panel / 4-Panel Sliding Options
Max Size (W×H) 3600mm × 2800mm (Standard Span)
Thermal Value (K) ≤ 1.1 W/(m²·K) (BC Step Code 5 Compliant)

Color Palette Options


Matte Black

Jet Black

Space Grey

Champagne Gold

Silver White

Wood Grain
Warren 160 Starshine lift-slide system featuring German-grade hardware for massive glass panels and aircraft-grade 6060-T66 aluminum frames.

Warren 160 Starshine lift-slide system featuring Belgian SOBINCO hardware for massive panoramic glass panels.

Architectural Performance Standards

The Warren Starshine 160 Series represents the absolute pinnacle of panoramic glazing for high-end residential and multi-unit developments in BC.

By utilizing a massive 160mm system depth, we provide architects with the structural backbone required for extra-large spans up to 3.6 meters without compromising on thermal integrity. Each unit is equipped with a Belgian Sobinco lift-and-slide mechanism, allowing for massive 400kg panels to be operated with effortless precision.

The system integrates our proprietary Starshine Hidden Drainage technology, ensuring that coastal BC rain is effectively managed while maintaining a flawless, minimalist architectural look with zero visible weep holes.

10-YEAR
Frame & Hardware
5-YEAR
Glass & Seals
LIFETIME
Technical Support

Technical Support FAQ

Does the 160 Series meet the BC Energy Step Code 5?
Yes. Combined with Triple Glazing, the 160 series achieves ≤ 1.1 W/(m²·K), meeting the requirements for Net-Zero ready residential construction in British Columbia.
What is the advantage of 160mm depth vs 135mm?
The 160mm depth provides a wider thermal break and higher structural inertia, allowing for larger panel widths and heights while maintaining superior wind pressure resistance (NAFS Level 9).
Do you provide shop drawings?
Absolutely. We provide comprehensive CAD/PDF shop drawings and NAFS certificates to assist our trade partners in the municipal permit and approval process.

National Project Supply Desk

Supplying a luxury residential project or a multi-unit development in British Columbia? Access professional B2B trade pricing and local project support from our Burnaby warehouse.

Request Project Quote

Frequently Asked Questions

Does the Warren 160 Lift & Slide Doors Canada – Aluminum Patio Door System, Triple Pane Ready series meet the BC Energy Step Code 5 requirements?
Yes. When configured with our high-performance triple glazing, the Warren 160 Lift & Slide Doors Canada – Aluminum Patio Door System, Triple Pane Ready series achieves a thermal K-value of ≤ 1.1 W/(m²·K). This meets the stringent requirements for Net-Zero ready residential construction under the BC Energy Step Code 5 in British Columbia.
What is the structural advantage of the 160mm system depth in the Warren 160 Lift & Slide Doors Canada – Aluminum Patio Door System, Triple Pane Ready series compared to the 135mm series?
The 160mm system depth of the Warren 160 Lift & Slide Doors Canada – Aluminum Patio Door System, Triple Pane Ready series provides a significantly wider thermal break and higher structural inertia. This engineering allow for much larger panoramic panel widths and heights while maintaining superior NAFS Level 9 wind pressure resistance, ideal for coastal BC architectural projects.
Are comprehensive CAD/PDF shop drawings provided for the Warren 160 Lift & Slide Doors Canada – Aluminum Patio Door System, Triple Pane Ready series to facilitate municipal permits?
Absolutely. We support our B2B trade partners by providing comprehensive CAD/PDF shop drawings and NAFS performance certificates for the Warren 160 Lift & Slide Doors Canada – Aluminum Patio Door System, Triple Pane Ready series, helping to facilitate a smooth municipal permit and City approval process across the Lower Mainland.
Are Warren 160 Lift & Slide Doors Canada – Aluminum Patio Door System, Triple Pane Ready products NAFS and Energy Star certified for Canada?
Yes, the Warren 160 Lift & Slide Doors Canada – Aluminum Patio Door System, Triple Pane Ready series is fully NAFS certified and Energy Star rated, meeting the strict BC Building Code requirements for thermal performance and structural integrity in Canada.
What materials are used in the Warren 160 Lift & Slide Doors Canada – Aluminum Patio Door System, Triple Pane Ready series?
We utilize aviation-grade 6060-T66 thermal break aluminum profiles combined with high-performance triple glazing options to ensure maximum energy efficiency and long-term durability in the demanding Canadian climate.
Do you offer free on-site measurement for the Warren 160 Lift & Slide Doors Canada – Aluminum Patio Door System, Triple Pane Ready series?
Yes, we provide free professional on-site measurement services for contractors and developers in the Metro Vancouver area to ensure a perfect custom fit for every Warren 160 Lift & Slide Doors Canada – Aluminum Patio Door System, Triple Pane Ready installation.
What is the typical lead time for custom Warren 160 Lift & Slide Doors Canada – Aluminum Patio Door System, Triple Pane Ready orders?
As a factory-direct wholesaler, our typical lead time for custom Warren 160 Lift & Slide Doors Canada – Aluminum Patio Door System, Triple Pane Ready orders is optimized for local projects. Please contact our Burnaby office for specific project timelines and technical support.
