Hwell V1 One-Piece Smart Toilet Dual Flush 1.06 / 1.59 GPF - Automatic Floor-Mounted, Instant heating, Elongated, CUPC/ETL/CE Certified

Name: Hwell V1 One-Piece Smart Toilet Dual Flush 1.06 / 1.59 GPF - Automatic Floor-Mounted, Instant heating, Elongated, CUPC/ETL/CE Certified
Brand: Hwell
SKU: 14865937564013
Price: 399.0 CAD
Availability: InStock
Rating: 5.0 (1 reviews)

In stock

5.0 1 review

Usually ships within 5-15 days, unless there is a special requirement or a very large purchase order.

$399.00

~~$569.00~~ Sale $399.00

📄 Need a quote instead? Add items to cart, then use the Request a Quote for This Cart button at checkout.

Alex is thinking…

💬

Continue this conversation Get trade pricing · Ask follow-ups · Request a quote

→

🏗️ Builder-focused advice

🍁 Canadian certified products

📦 Volume pricing available

Product details

Vendor Hwell

Helpful documents

Vendor Hwell

Would you like to inquire about a wholesale purchase?

Request A Quote

Register Membership

Engineering Highlights

CUPC & ETL CERTIFIED

Fully compliant with the National Plumbing Code of Canada (NPC). Accepted by building inspectors nationwide.

TANKLESS INSTANT HEAT

Space-saving tankless design draws water directly for unlimited warm water cleaning and energy efficiency.

17-3/8" CHAIR HEIGHT

ADA-compliant floor-to-bowl height. Optimized for modern accessibility, seniors, and premium condo renovations.

Engineering & Technical Specifications

Category	Technical Details
Model Number	Hwell V1
Flush Volume (Full/Half)	Full: 6L (1.59 GPF) \| Half: 4L (1.06 GPF) — High Efficiency
Water Pressure Range	0.1 - 16 Bar (Compatible with Low-Pressure Projects)
Electrical Compatibility	AC 100V-110V / 200V-240V (Universal Wide Voltage)
Certification Status	cUPC · ETL · WaterSense · FCC Certified
Product Dimensions	680 × 400 × 470 mm (Approx. 26.8" × 15.7" × 18.5")
Rough-In Distance	S-Trap: 300 / 400 mm \| P-Trap Standard
Structure Type	One-Piece, Elongated Bowl, Standing Floor Mounted
Material (Ceramic)	High-Grade Vitreous China with Self-Cleaning Glaze
Weight (Net/Gross)	Net: 46.5 kg \| Gross: 47.0 kg
Logistics Info	HS Code: 6910100000

Next-Gen Integrated Technology

🦶

Triple Foot Sensing
Contactless control for lid opening, seat lifting, and flushing.

🛡️

180° Foam Shield
Anti-splash, anti-odor, and antibacterial foam barrier technology.

🎵

Multimedia & Voice
In-built music and intelligent voice control for ultimate luxury.

🦠

UV-C Sterilization
Medical-grade UV light ensures 99.9% hygiene for the bidet wand.

FULL FUNCTIONALITY CHECKLIST

Hygienic Washing • Posterior/Feminine Wash
• Massage/Moving Wash
• Baby Mode Cleaning
• Instant Warm Water
• Self-cleaning Nozzle

Climate Control • Heated Seat (Adjustable)
• Warm Air Dryer (Adjustable)
• Water Temp. (Adjustable)
• Seat Sensor Technology

Intelligent Ops • Auto Lid Open/Close
• Auto Deodorization
• Smart LCD Display
• One-Knob Control
• Remote Control Operations

Aesthetics & Comfort • Night Light Mode
• Atmospheric Deco Light
• In-built Aromatherapy
• Soft-Close Silent Lid

Safety & Quality • Leakage Protection
• Flame Retardant Material
• IPX4 Waterproofing
• 12V Safety Voltage System

Eco & Filtration • Energy Saving Mode
• Power-off Flush Support
• Double Water Filtration
• High-Grade Vitreous Ceramic

■

Canadian Regulatory Excellence
The Hwell V1-E1 is engineered specifically for the North American market. Fully cUPC and ETL certified, this unit ensures seamless installation approval by municipal home inspectors and meets the rigorous safety and efficiency standards for 2024 Canadian building codes.

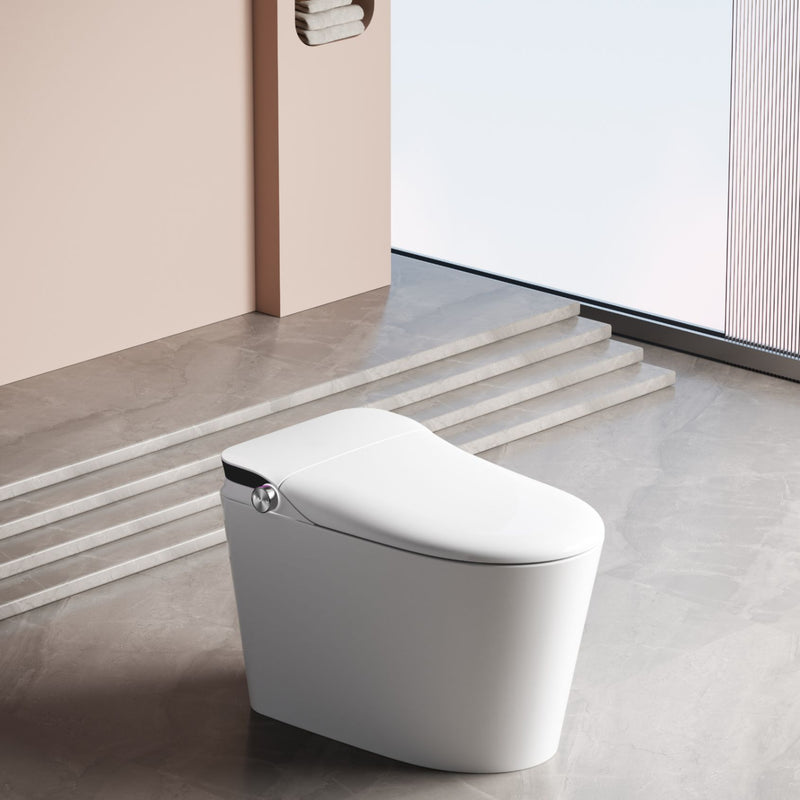

Hwell V1 Tankless Intelligent Toilet

The Hwell V1 is a flagship professional-grade one-piece tankless smart toilet, specifically engineered for the high-end North American market. Its space-saving profile and advanced touchless technology make it a future-proof investment for luxury bathroom renovations and custom builds across Canada.

Expert Resources & Collections:

Hwell V1 vs traditional toilet comparison chart and space saving benefits

ADA-compliant chair height 17.375 inch smart toilet seat for seniors and accessibility

Nano-glaze vitreous china ceramic body of Hwell V1 flagship tankless toilet

Self-cleaning stainless steel bidet nozzle with UV sterilization light on Hwell V1

Wireless remote control functions for Hwell V1 smart bidet toilet seat settings

Foot touch flush sensor for hands-free operation while standing

Adjustable water temperature and spray pressure settings for personalized cleaning

Intelligent LED night light feature on Hwell smart toilet for safety at night

Warm air drying system with adjustable temperature settings on Hwell V1 bidet

Built-in automatic air deodorizer and carbon filter system for bathroom odor control

Soft-close and slow-drop lid and seat mechanism preventing noise and damage

Eco-friendly energy-saving mode for Hwell smart toilet efficiency

Manual backup side control buttons for smart toilet operation during power outage

Flexible 300mm to 400mm rough-in installation guide for Canadian bathrooms

Internal engineering and jet siphon drainage mechanism of tankless smart toilet

Hwell V1 smart toilet package contents including remote and installation kit

1200 degree high-temperature ceramic firing process for durability and glaze quality

Modern luxury bathroom installation view of Hwell V1 tankless smart toilet

Hwell 1-year manufacturer warranty and technical support information

Frequently Asked Questions

What are the benefits of a tankless smart toilet?

Tankless designs like the V1 are significantly more space-saving and hygienic. They draw water directly from the supply for instant heating, meaning you never run out of warm water and there is no bulky reservoir to maintain.

Does the Hwell V1 meet Canadian plumbing codes?

Yes. The V1 is CUPC and ETL certified, which are the mandatory standards for legal installation across Canada. It complies with the NPC and is accepted by home inspectors nationwide.

Will the 300/350/400mm rough-in fit my bathroom?

Yes, the V1 features a flexible installation kit that allows it to adapt to the most common Canadian rough-in distances, making it an ideal professional choice for both new builds and retrofits.

Is the automatic lid sensor adjustable?

Yes. The proximity sensor is finely tuned for standard residential bathroom layouts. All intelligent functions, including lid operation and auto-flush, can be customized via the wireless remote.
