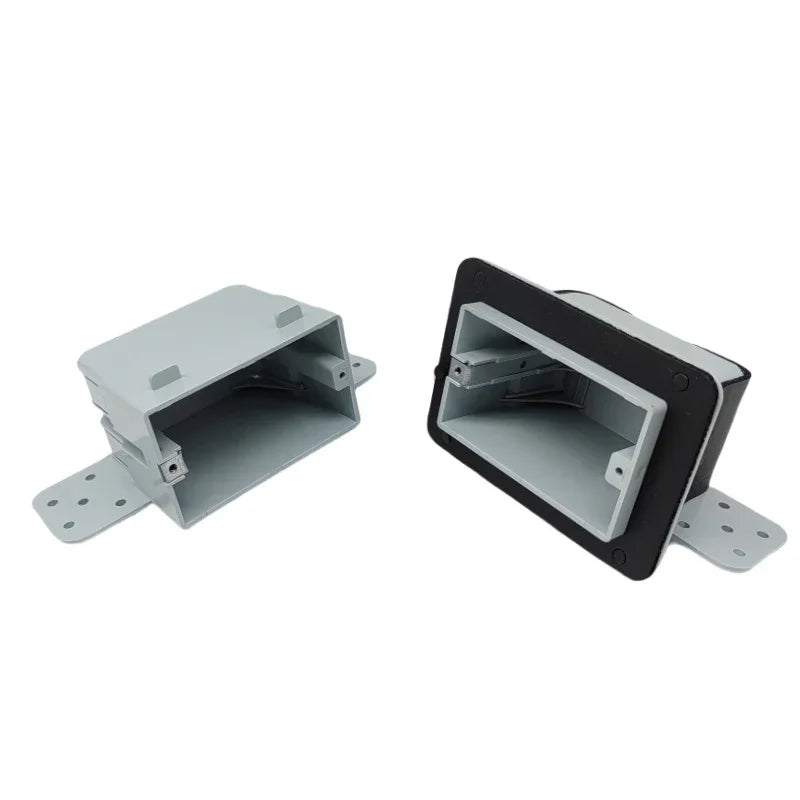

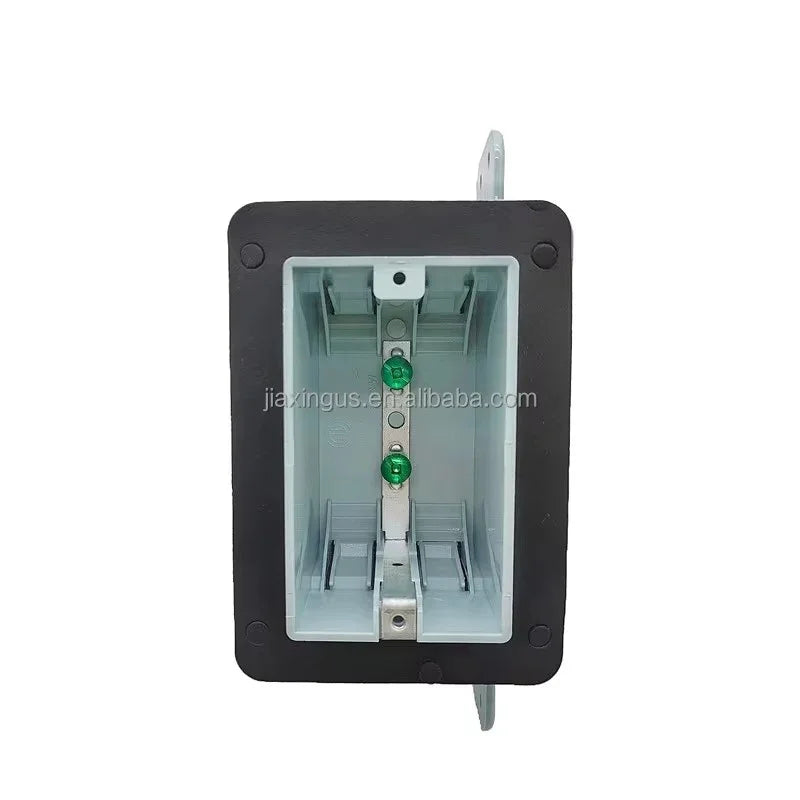

BBS 1-Gang Non-Metallic Vapour Proof Electrical Box | Airtight PVC Device Box

Name: BBS 1-Gang Non-Metallic Vapour Proof Electrical Box | Airtight PVC Device Box
Brand: BBS
SKU: 14775816290669
Price: 2.98 CAD
Availability: InStock

In stock

No reviews

Usually ships within 5-15 days, unless there is a special requirement or a very large purchase order.

$2.98

📄 Need a quote instead? Add items to cart, then use the Request a Quote for This Cart button at checkout.

Alex is thinking…

💬

Continue this conversation Get trade pricing · Ask follow-ups · Request a quote

→

🏗️ Builder-focused advice

🍁 Canadian certified products

📦 Volume pricing available

Product details

Vendor BBS

Helpful documents

Vendor BBS

Would you like to inquire about a wholesale purchase?

Request A Quote

Register Membership

Engineering Highlights

AIRTIGHT VAPOUR SEAL

Features a built-in gasketed flange. Provides a superior air seal against the poly vapour barrier, preventing costly energy loss and moisture infiltration.

LARGE INTERIOR VOLUME

Spacious 20.0+ cu. in. capacity allows for comfortable wiring of dimmers and smart switches without over-crowding conductors.

ASTM E283 CERTIFIED

Meets ASTM E283 air leakage requirements. Fully compliant with the latest Canadian building codes for energy-efficient homes.

Product Details

Specification Item	Technical Data
Gang Configuration	Single Gang (1-Gang)
Internal Volume	20.5 Cubic Inches
Seal Technology	Built-in Poly-Flange with Gasket
Material Grade	High-Density Non-Conductive PVC
Safety Standards	CSA C22.2 No. 18.2 / cULus Listed
Compliance	NBC (National Building Code) Airtight Standard

■
ELIMINATE "POLY BOOTS"
The integrated flange eliminates the need for separate polyethylene vapour boots, drastically reducing the complexity of the sealing process during rough-in.
■
MOISTURE PREVENTION
Prevents condensation from forming behind the box in the wall cavity, protecting the electrical devices and wall insulation from moisture damage.

BBS National Energy Standard

The Industrial Choice for High-Efficiency Exterior Walls.

The BBS 1-Gang Vapour Proof Box is specifically engineered for Canadian residential construction. Designed for use in exterior walls where a vapour barrier is required, this box ensures a seamless, airtight connection that meets the strict energy-saving requirements of NBC and Energy Star standards.

Professional Application Guide

Exterior Wall Rough-In

Mandatory for all electrical devices installed on the building's thermal envelope (exterior walls) to maintain vapour barrier integrity.

Net-Zero Construction

Perfect for Net-Zero and high-performance homes where airtightness (ACH) is the primary metric for energy performance.

Condo/Apartment Units

Used in party walls and exterior-facing units to prevent drafts and improve the sound dampening between residential spaces.

Installation Engineering Checklist:

■ Vapour Tape Seal: For maximum airtightness, always apply approved acoustic sealant or vapour tape between the box flange and the poly barrier.
■ Cable Entry: Use the built-in airtight entry ports. Do not cut large holes that compromise the airtight seal around the NMD90 wire.
■ Mounting Precision: Ensure the flange sits perfectly flat against the stud face to allow the vapour barrier to lay smoothly over it.

Frequently Asked Questions

Why do I need a "Vapour Proof" box instead of a standard one?

Standard boxes allow air to leak through the wall, causing drafts and condensation. Vapour proof boxes seal the hole, keeping your home warm and protecting the wall from mold.

Is this box CSA approved for BC and Ontario?

Yes. It is fully **cULus** and **CSA certified**, meeting all electrical and building code requirements for every province in Canada.

Do I still need a "poly boot" or "poly hat"?

No. The built-in flange and gasket replace the need for traditional polyethylene vapour boots, saving you both time and material cost.
