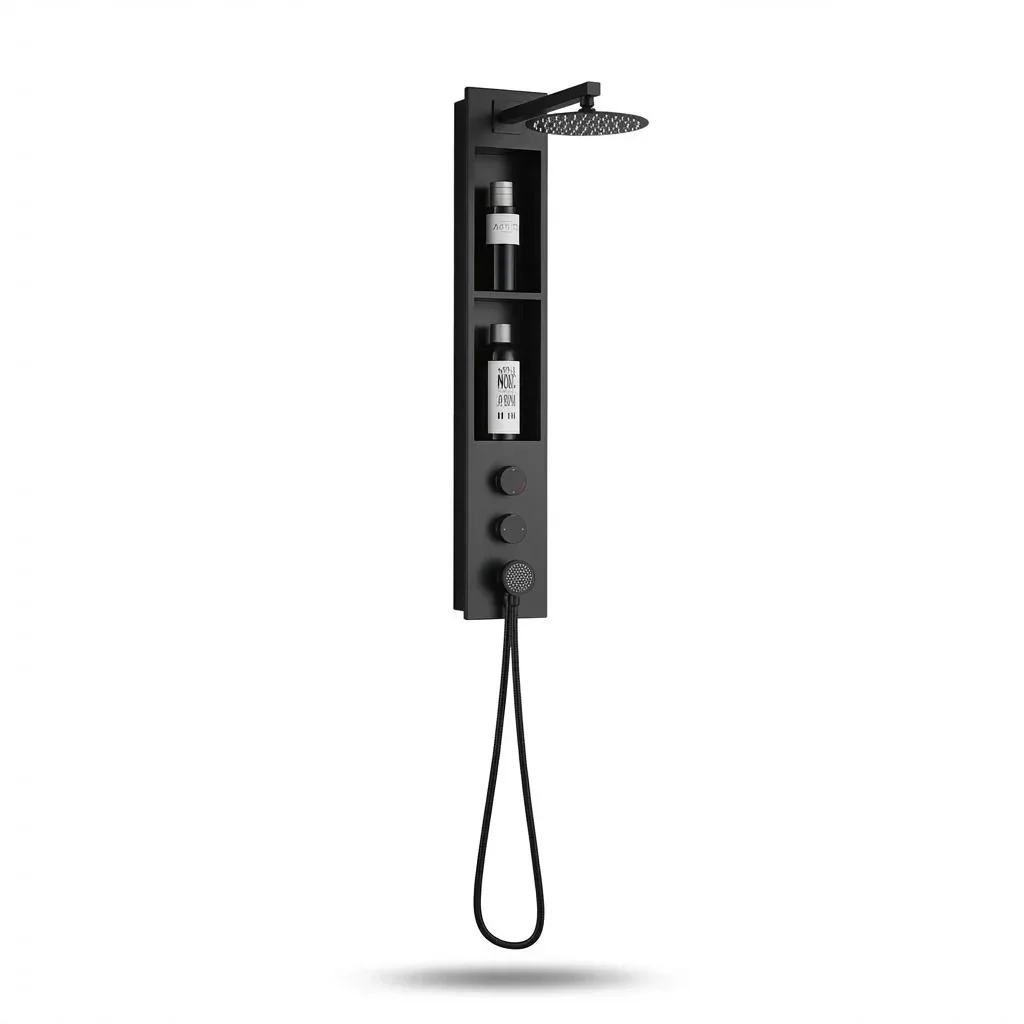

BBS AB2002 Integrated Shower System and Wall Niche in Modern Bathroom - Space-Saving Narrow Design for Canadian Contractors

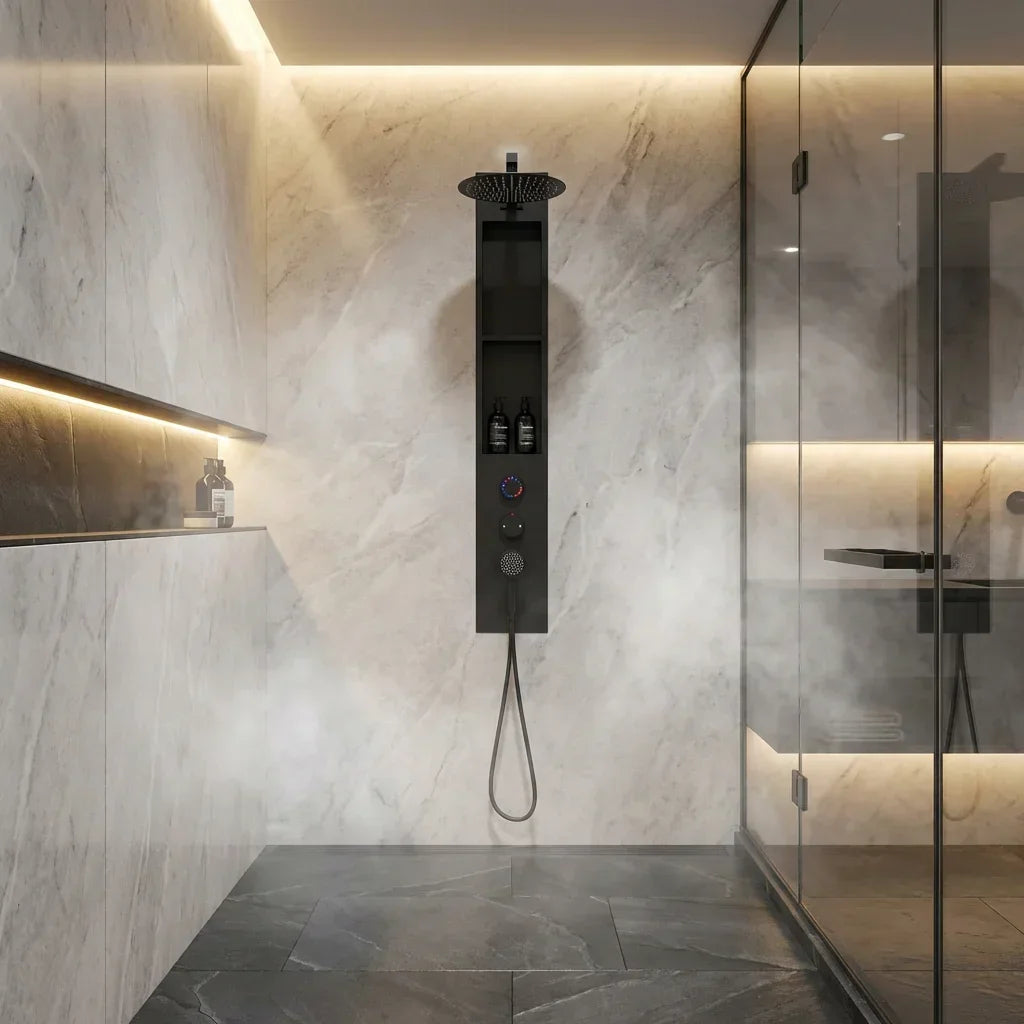

Matte Black Built-In Shower Panel System Rainfall Head and Handheld Shower | British Building Supplies

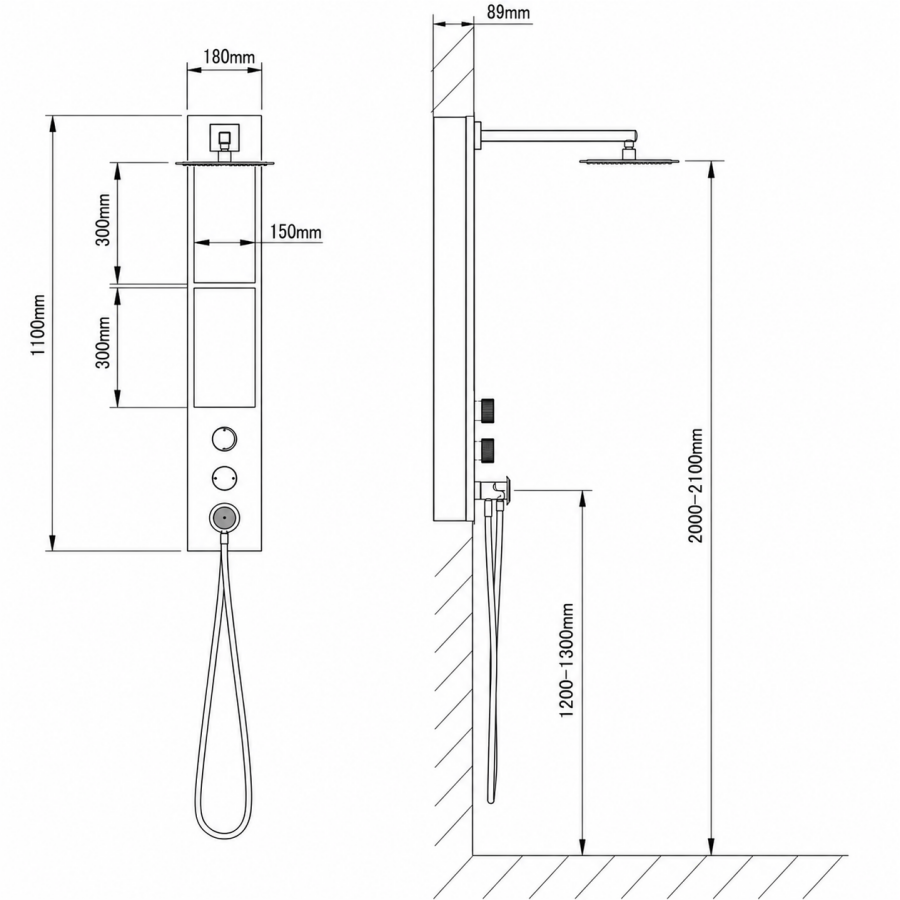

AB2002 Engineering Drawing and Installation Dimensions: 180x1100x98mm Outer Frame with 165x1091x80mm Rough-in Cut-out for NPT Integrated Shower Systems

BBS

Built-In Shower Panel with Rain Head & Hand Shower — Matte Black

Name: Built-In Shower Panel with Rain Head & Hand Shower — Matte Black
Brand: BBS
SKU: 14724898259309
Price: 699.98 CAD
Availability: InStock

In stock

No reviews

Usually ships within 5-15 days, unless there is a special requirement or a very large purchase order.

$699.98

📄 Need a quote instead? Add items to cart, then use the Request a Quote for This Cart button at checkout.

Alex is thinking…

💬

Continue this conversation Get trade pricing · Ask follow-ups · Request a quote

→

🏗️ Builder-focused advice

🍁 Canadian certified products

📦 Volume pricing available

Product details

Vendor BBS

Helpful documents

Vendor BBS
User manual
- AB2002 installation.pdf

Would you like to inquire about a wholesale purchase?

Request A Quote

Register Membership

Engineering Highlights

2-IN-1 INTEGRATED SYSTEM

Seamlessly combines a 304 Stainless Steel wall niche with a high-end shower system. Reduces installation steps and saves critical space in narrow bathroom layouts.

LEAK-PROOF SHIELD

Features an integrated flanged waterproof box. Provides double-layer protection inside the wall, eliminating the risk of internal leakage in multi-unit developments.

59A BRASS PRECISION

Equipped with a 59A-grade brass pressure balance valve. Ensures stable temperature control and passes strict Canadian North American plumbing inspections.

AB2002 Integrated System Technical Data

Parameter	Specification
Product Size	180 x 1100 x 98 mm (Approx. 7.1" x 43.3" x 3.8")
Opening Cut-out	165 x 1091 x 80 mm (Excluding tile layer)
Showerhead Specs	10" Round Rainfall Head + 3" Round Handheld
Valve Material	Premium 59A Brass Body (Anti-corrosion & Antibacterial)
Niche Material	SUS 304 Stainless Steel (Fingerprint-Resistant Nano Coating)
Thread Standard	NPT (North American Standard)
Safety Features	Pressure Balance Valve & Integrated Check Valve
Hose Type	1.5m Anti-tangle PVC (5-layer explosion-proof)

*Note: Net weight 12kg. Designed for modular slim wall construction in Canada.

Modular Slim Structure

The AB2002 Integrated System is a game-changer for high-density residential renovations and new builds across Canada. By merging storage and showering into a single 180mm narrow-profile unit, it eliminates the need for separate wall framing for niches. The premium 59A brass valve and fingerprint-resistant nano coating ensure this system meets the luxury architectural standards required for contemporary Canadian bathrooms.

Technical & Installation FAQ

Does the built-in waterproof box work with Canadian drywall?

Yes. The integrated box features a flange designed for seamless sealing with standard 1/2" or 5/8" cement board or drywall, providing a watertight seal before tiling.

Is the valve compliant with North American standards?

Absolutely. The system uses standard NPT threads and includes a Pressure Balance Valve, which is mandatory in most Canadian provinces to prevent thermal shock.

How does the Nano Coating help maintenance?

The industrial-grade Nano Coating resists fingerprints and water spots, significantly reducing the cleaning frequency required for hotel or multi-family rental properties.

BBS National Project Desk

Ordering for a condo development or high-end renovation? Access wholesale trade pricing and standardized technical support from our Burnaby hub.

Project Support: +1 604-356-7999

Request Project Quote

Engineering Compliance & Standards

cUPC CERTIFIED

Certified by IAPMO to meet the Uniform Plumbing Code (UPC) for both Canada and the US. This ensures the unit complies with all North American plumbing health and safety standards, guaranteeing it passes all local municipal inspections.

ETL LISTED (INTERTEK)

The ETL Listed Mark is proof of electrical product compliance to North American safety standards. It verifies that the smart control system, heating elements, and sensors have been rigorously tested for reliable operation in Canadian bathrooms.

NATIONAL PLUMBING CODE COMPLIANT

Specifically engineered to meet the requirements of the National Plumbing Code of Canada (NPC). Designed for multi-residential and commercial projects with a focus on water efficiency and long-term structural reliability.

B2B GRADE QUALITY ASSURANCE

Built for the professional trade. Each unit undergoes a **Multi-Point Factory Inspection** before shipping, ensuring that contractors receive a "zero-defect" product ready for immediate installation and long-term performance.
