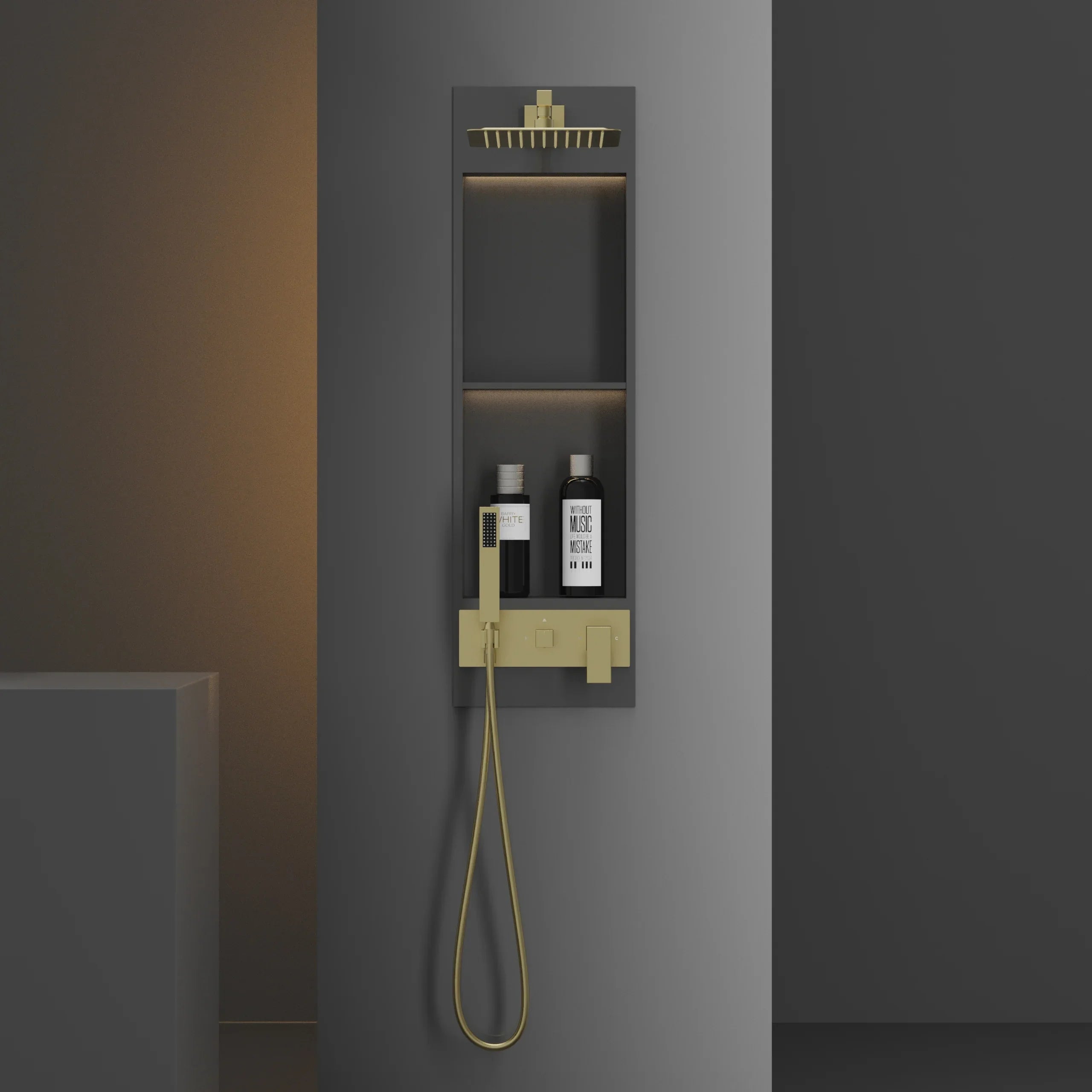

BBS AB2001 LED Integrated Smart Shower Niche System - Luxury Modern Square Design for High-End Bathroom Renovations Canada

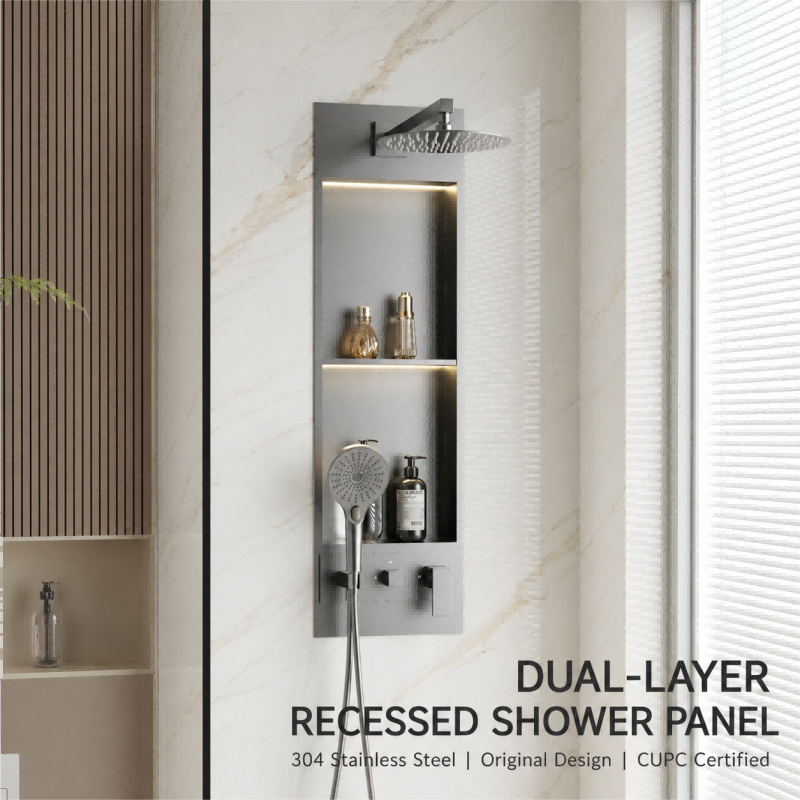

BBS AB2001 LED Integrated Smart Shower Niche System - Features

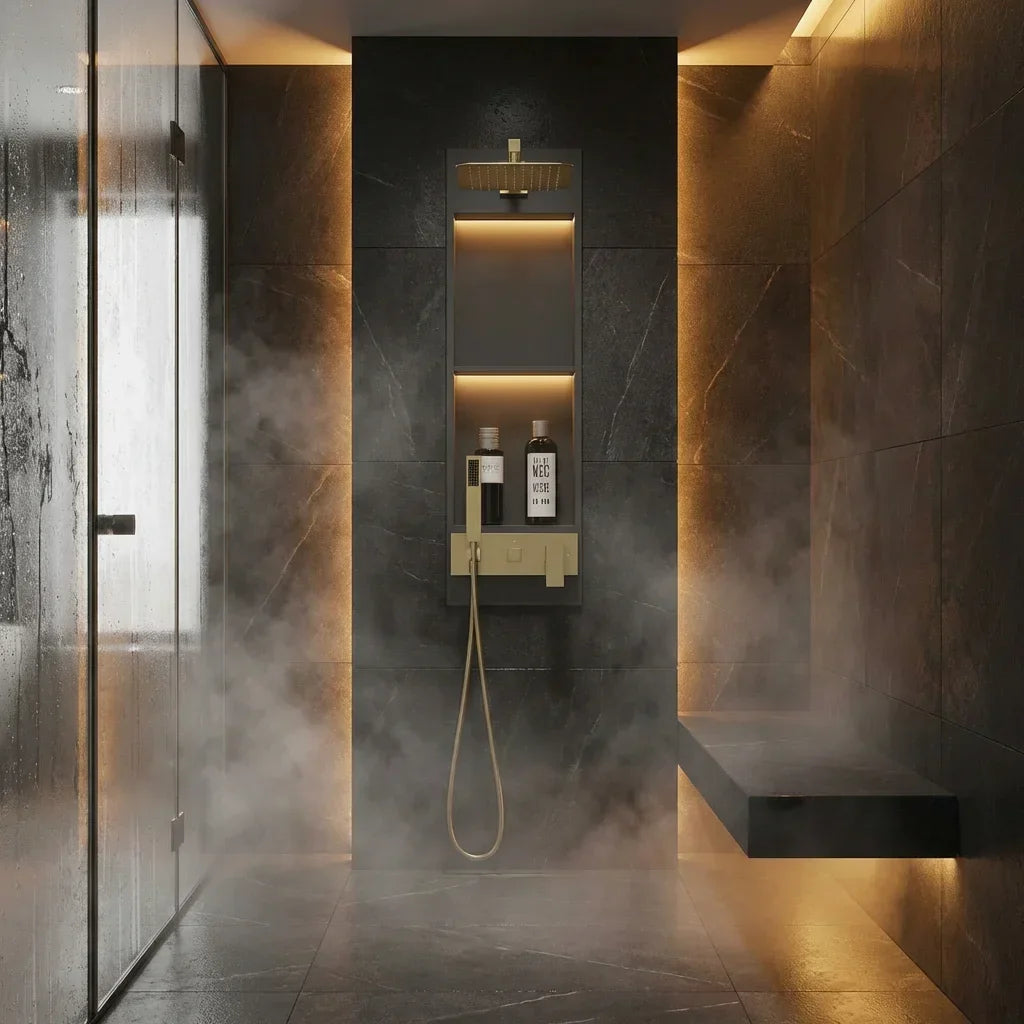

Gold Finish Built-In Shower Panel System with Niche Rainfall and Handheld Shower | British Building Supplies | bathroom

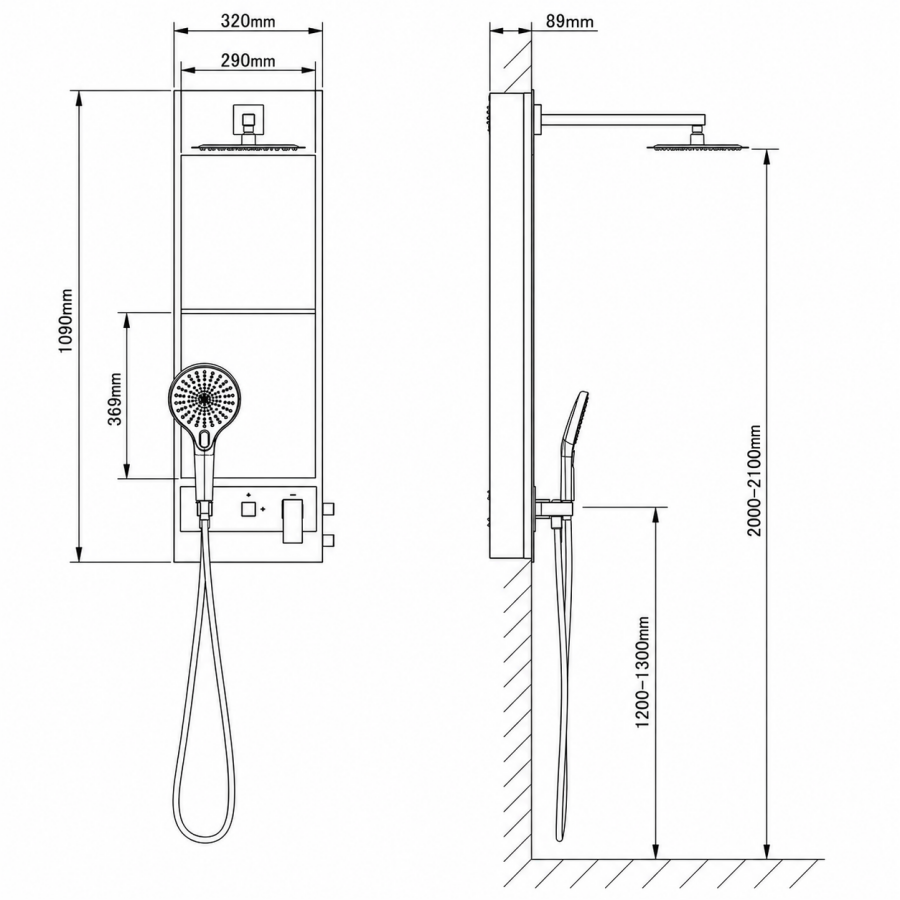

AB2001 Engineering Layout and Cut-out Specifications: 320x1090x98mm Outer Frame with 305x1075x80mm Rough-in Dimension and LED Power Entry Points for North American NPT Shower Installations

BBS

BBS AB2001 Integrated Wall Niche Shower System – 304 Stainless Steel LED Shower Combo with 10" Rainfall Head & Pressure Balance Valve (NPT, Canada Standard)

Name: BBS AB2001 Integrated Wall Niche Shower System – 304 Stainless Steel LED Shower Combo with 10" Rainfall Head & Pressure Balance Valve (NPT, Canada Standard)
Brand: BBS
SKU: 14723968369005
Price: 789.98 CAD
Availability: InStock

In stock

No reviews

Usually ships within 5-15 days, unless there is a special requirement or a very large purchase order.

$789.98

~~$849.99~~ Sale $789.98

📄 Need a quote instead? Add items to cart, then use the Request a Quote for This Cart button at checkout.

Alex is thinking…

💬

Continue this conversation Get trade pricing · Ask follow-ups · Request a quote

→

🏗️ Builder-focused advice

🍁 Canadian certified products

📦 Volume pricing available

Product details

Vendor BBS

Helpful documents

Vendor BBS
User manual
- AB2001 installation.pdf

Would you like to inquire about a wholesale purchase?

Request A Quote

Register Membership

Engineering Highlights

2-IN-1 INTEGRATED SYSTEM

Seamlessly combines a stainless steel wall niche with a full shower system, saving installation space while delivering a clean, modern architectural finish.

BUILT-IN WATERPROOF BOX

Integrated flanged waterproof box prevents hidden wall leakage, offering dual-layer protection ideal for condos and multi-family construction.

59A BRASS VALVE CORE

Premium 59A brass valve ensures durability, corrosion resistance, and stable water temperature control under varying pressure conditions.

AB2001 Integrated Shower System Technical Data

Parameter	Specification
Product Size	320 × 1090 × 98 mm
Opening Cut-out	305 × 1075 × 80 mm (Excluding tile layer)
Shower Configuration	10" Square Rainfall Head + 5" Square Handheld
Thread Standard	NPT (North American Standard)
Valve System	59A Brass Pressure Balance Valve + Check Valve
Material	304 Stainless Steel (Niche & Shower Components)
Hose	1.5m Anti-tangle PVC (Explosion-proof)
Water Outlet	Silicone Nozzles (Single-function Button Control)
Lighting	Integrated LED Waterproof Light Strip
Waterproof Box	Built-in Stainless Steel Box with Flange
Net Weight	20 kg
Gross Weight	24.4 kg
Carton Size	1180 × 386 × 195 mm

Integrated Luxury Shower Solution

The AB2001 is engineered for modern North American bathrooms, combining a dual-layer storage wall niche with a full-function shower system in one compact unit. Built from SUS 304 stainless steel and equipped with a precision 59A brass valve, it delivers long-term durability and performance.

The integrated LED-lit niche enhances ambient lighting while improving usability, and the pressure balance valve ensures consistent water temperature, making it ideal for residential, condo, and hospitality applications across Canada.

Key Features

Minimalist high-pressure shower system with smooth and gentle water flow
Double-layer wall niche design for increased storage capacity
59A premium brass valve for durability and antibacterial performance
Pressure balance valve prevents sudden temperature fluctuations
Anti-tangle 5-layer PVC hose with heat and explosion resistance
Fingerprint-resistant nano coating for easy maintenance
Modular structure for simplified installation and servicing
LED ambient lighting enhances bathroom experience

Technical & Installation FAQ

Is this system compatible with Canadian plumbing standards?

Yes. It uses standard NPT connections and includes a pressure balance valve required in most Canadian codes.

Does the waterproof box prevent internal leakage?

Absolutely. The built-in flanged waterproof box provides dual protection inside the wall structure.

Is installation complex?

No. The modular integrated design reduces installation steps compared to traditional niche + shower setups.

BBS Project Supply

Bulk pricing available for developers, contractors, and renovation projects across Canada.

Burnaby Support Line: +1 604-356-7999

Request Quote

Engineering Compliance & Standards

cUPC CERTIFIED

Certified by IAPMO to meet the Uniform Plumbing Code (UPC) for both Canada and the US. This ensures the unit complies with all North American plumbing health and safety standards, guaranteeing it passes all local municipal inspections.

ETL LISTED (INTERTEK)

The ETL Listed Mark is proof of electrical product compliance to North American safety standards. It verifies that the smart control system, heating elements, and sensors have been rigorously tested for reliable operation in Canadian bathrooms.

NATIONAL PLUMBING CODE COMPLIANT

Specifically engineered to meet the requirements of the National Plumbing Code of Canada (NPC). Designed for multi-residential and commercial projects with a focus on water efficiency and long-term structural reliability.

B2B GRADE QUALITY ASSURANCE

Built for the professional trade. Each unit undergoes a **Multi-Point Factory Inspection** before shipping, ensuring that contractors receive a "zero-defect" product ready for immediate installation and long-term performance.
