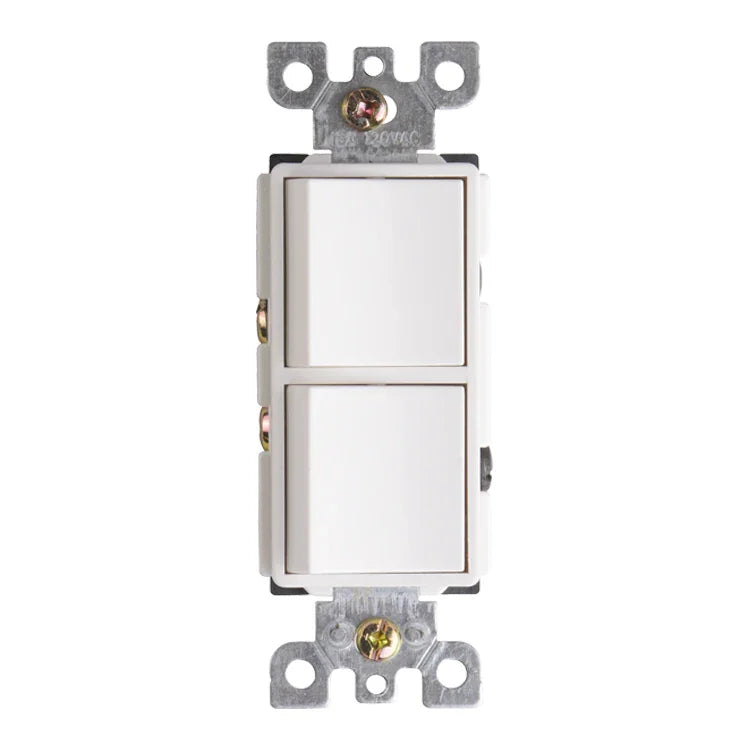

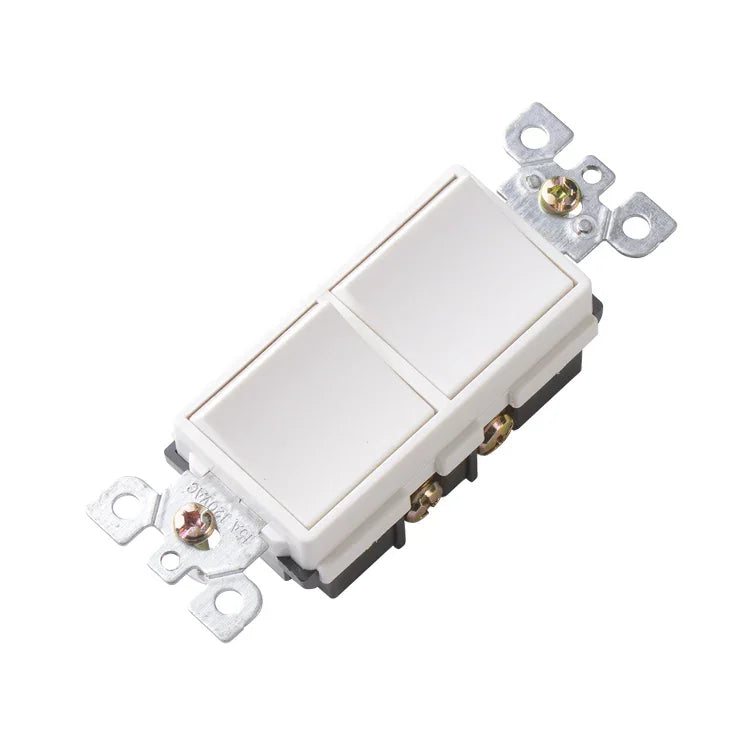

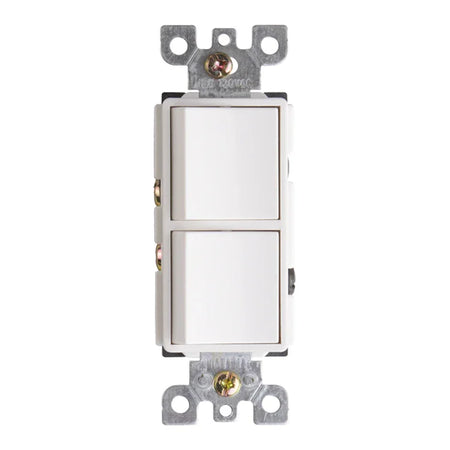

BBS-YGD-002 | 1Duplex Rocker Combination Decorator Switch, 15A 120V Grounding Double Light Switch for Single-Gang Box, Residential & Commercial Grade, UL Listed, White
Usually ships within 5-15 days, unless there is a special requirement or a very large purchase order.
Regular price
$9.29
Ask our AI Advisor
Instant answers · Trade pricing · Expert advice
Alex is thinking…
Continue this conversation
Get trade pricing · Ask follow-ups · Request a quote
→
Builder-focused advice
Canadian certified products
Volume pricing available
Couldn't load pickup availability
Product details
- Vendor BBS
Helpful documents
- Vendor BBS
Engineering Highlights
SPACE-SAVING DUALITY
Integrates two independent single-pole switches into a single-gang footprint. Optimized for high-density electrical layouts in modern architectural projects.
40,000 SWITCHING CYCLES
Tested for extreme longevity. Features a robust thermoplastic rocker and internal mechanism designed to maintain performance over decades of use.
cULus CERTIFIED QUALITY
Rigorously tested to UL20 and CSA standards. Features a fire-retardant PC chassis and zinc-plated steel yoke for structural integrity.
Product Details
| Specification Item | Technical Data |
|---|---|
| Model Number | BBS-YGD-002 |
| Configuration | Duplex Single-Pole (Dual Switch) |
| Electrical Rating | 15A / 120VAC / 60Hz |
| Dimensions (Size) | 104.5 × 33.5 × 32.4 mm |
| Color Configuration | Rocker & Frame: White | Base: Black |
| Enclosure Material | High-Impact PC (Polycarbonate) |
| Terminal Metallurgy | Copper Alloy (Acid Pickling) |
| Mounting Yoke | Zinc Plated Steel (Rust-Proof) |
| Switching Life | 40,000 Cycles |
| Dielectric Voltage | 1500VAC Withstand |
| Flame Classification | UL94-V2 |
| Operating Temp | -20℃ ～ 60℃ |
| Weight | 74g |
| Certification / Standards | cULus | UL20 | CSA C22.2#111 |
| Wiring Specification | 14AWG Copper Wire |
-
■
SPACE-SAVING DUAL CONTROL
Integrated duplex design allows for the control of two separate lighting fixtures or appliances from a single-gang junction box, reducing architectural wall clutter. -
■
ARCHITECTURAL DECORA AESTHETIC
Features a high-gloss, impact-resistant rocker and frame that matches standardized Decora-style wall plates, ensuring a cohesive look across premium interiors.
Professional Application Guide
Bathroom Fan & Light
The definitive solution for controlling an exhaust fan and overhead lighting independently from a single switch location.
Kitchen Feature Zones
Ideal for managing independent circuits for under-cabinet LED strips and main overhead pot lights within a limited gang-box space.
High-Density Condo Units
Standardized choix for residential developments where vertical space in small mechanical or entry areas is at a premium.
Installation Engineering Checklist:
- ■ Common Feed Identification: Identify the common terminal (usually black) vs. independent load terminals before installation for correct circuit separation.

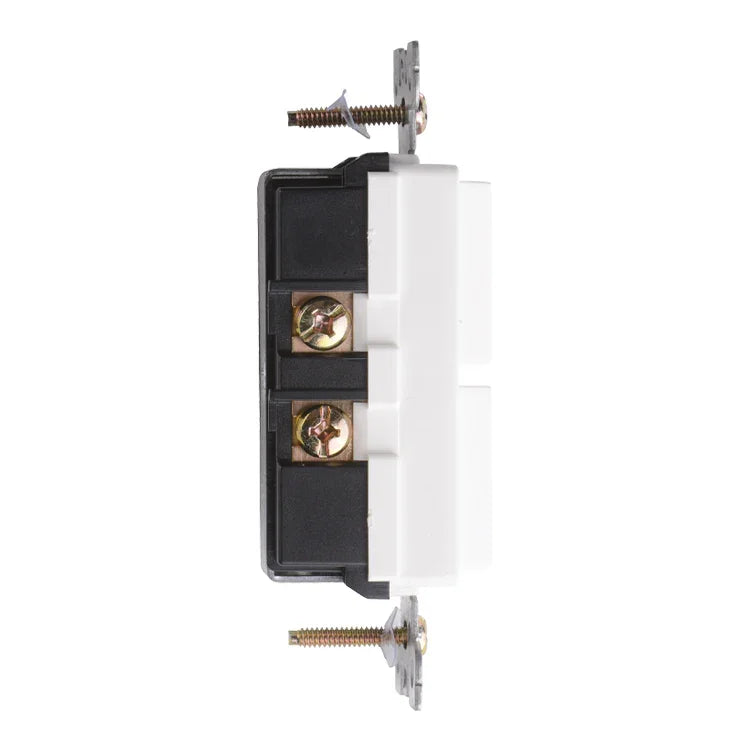

- ■ Break-Off Tab Management: Keep the brass tab intact if feeding from one circuit; remove it if feeding from two separate circuits for specialized motor/light loads.
- ■ Side-Wire Security: Ensure 14AWG copper wire is securely looped and tightened around terminal screws to 14-16 lb-in for optimal conductivity.
Frequently Asked Questions
What does "Duplex" mean in this switch?
It means there are two separate rockers on one device. Each rocker operates as an independent single-pole switch for two different loads.
Can this be used for a 3-way circuit?
No. This specific model is designed for single-pole applications only (controlling from one location). 3-way duplex models are available for multi-location needs.
Is it compatible with 12 AWG wiring?
While the internal rating is 15A, the side-wiring terminals are compatible with 12 AWG copper wire; however, 14 AWG is recommended for standard branch circuits.
