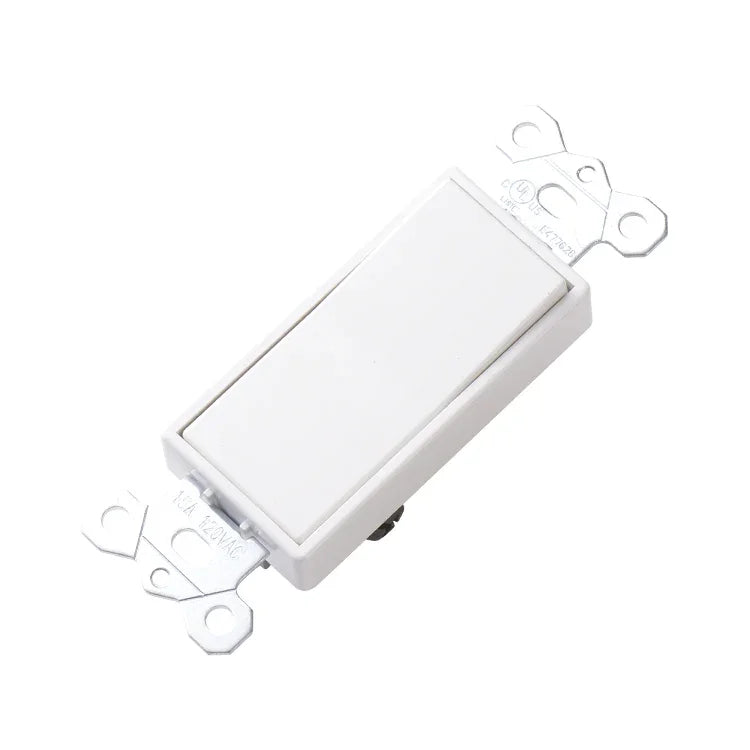

BBS-BAK-002 15A 3-Way Decora Rocker Switch Front Elevation Glossy White

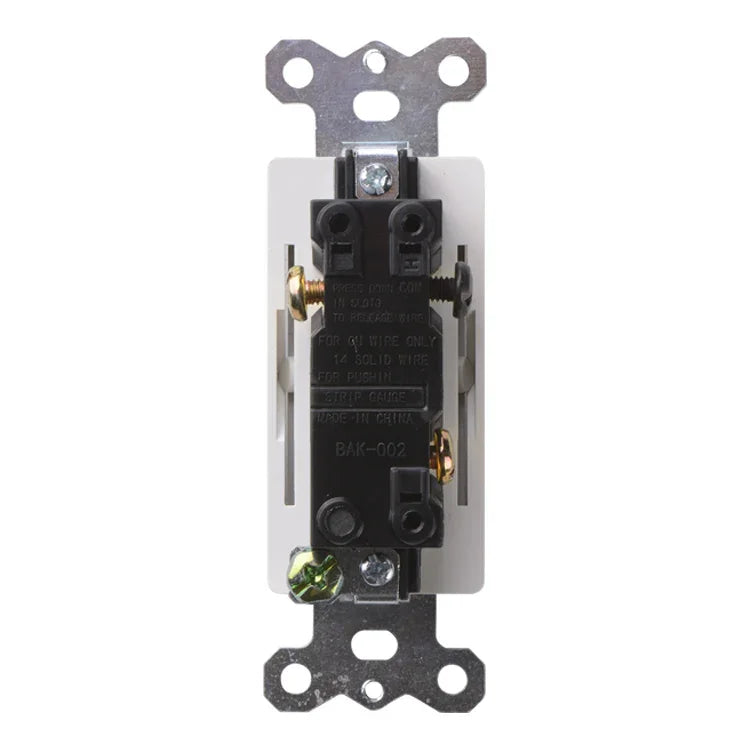

Rear Technical View of BBS-BAK-002 3-Way Switch featuring ETL Listed Safety Certification

BBS

BBS-BAK-002 | 15A 120V 3-Way Decora Rocker Switch | White | cULus Listed

Name: BBS-BAK-002 | 15A 120V 3-Way Decora Rocker Switch | White | cULus Listed
Brand: BBS
SKU: 14966506717549
Availability: InStock

In stock

No reviews

Usually ships within 5-15 days, unless there is a special requirement or a very large purchase order.

$3.29

Number Of Items

1 5 10 20 40

📄 Need a quote instead? Add items to cart, then use the Request a Quote for This Cart button at checkout.

Alex is thinking…

💬

Continue this conversation Get trade pricing · Ask follow-ups · Request a quote

→

🏗️ Builder-focused advice

🍁 Canadian certified products

📦 Volume pricing available

Product details

Vendor BBS

Helpful documents

Vendor BBS

Would you like to inquire about a wholesale purchase?

Request A Quote

Register Membership

Engineering Highlights

3-WAY CIRCUITRY

Engineered for 3-way lighting circuits, enabling seamless control from two separate locations. Mandatory for code-compliant stairways and long corridors.

40,000 SWITCHING CYCLES

Rigorously tested to withstand 40,000 mechanical operations. The high-impact thermoplastic rocker ensures silent, smooth tactile feedback for decades.

cETLus CERTIFIED QUALITY

Fully compliant with UL20 and CSA C22.2 standards. Features a zinc-plated steel yoke and fire-retardant PC chassis for uncompromised structural integrity.

Product Details

Specification Item	Technical Data
Model Number	BBS-BAK-002
Configuration	3-Way (Dual Location Control)
Electrical Rating	15A / 120VAC / 60Hz
Dimensions (Size)	104 × 34 × 32.4 mm
Color Profile	Rocker & Frame: White \| Base: Black
Enclosure Material	High-Impact PC (Polycarbonate)
Terminal Metallurgy	Copper Alloy (Acid Pickling)
Mounting Yoke	Zinc Plated Steel (Rust-Proof)
Switching Life	40,000 Cycles
Dielectric Voltage	1500VAC Withstand
Flame Classification	UL94-V2
Operating Temp	-20℃ ～ 60℃
Weight	53g
Certification / Standards	cETLus \| UL20 \| CSA C22.2 #111
Wiring Specification	14AWG (Side-Wire & Push-In)

■
SHALLOW-BODY RETROFIT DESIGN
Features a compact shallow-body profile that fits all standard electrical junction boxes, providing maximum space for wire management in tight 14/3 NMD90 installations.
■
SMOOTH ACTUATION INTERFACE
The impact-resistant rocker and frame deliver silent, smooth operation while maintaining a contemporary architectural aesthetic that matches standardized Decora-style wall plates.

BBS National Electrical Standard

Maximum Mechanical Longevity. Precision 3-Way Control.

The BBS-BAK-002 is a professional-grade 15A 3-way decorator wall switch engineered for high-reliability residential and commercial lighting circuits. Built with a high-impact PC housing and acid-pickled copper terminals, it is designed for a switching life of 40,000 cycles. Featuring both push-in and side-wiring options, it ensures a rational, standardized installation for multi-location switching in hallways, staircases, and master suites across Canada.

Professional Application Guide

Stairway Lighting

Mandatory for safety code compliance. Allows occupants to control lighting from the top and bottom of a stairwell for uncompromised visibility.

Long Corridors & Hallways

Ideal for controlling overhead lighting from either end of a residential or commercial hallway, increasing both safety and energy efficiency.

Executive Master Suites

Commonly utilized to control main lighting from the entry point and a secondary switch located conveniently at the bedside.

Installation Engineering Checklist:

■ "Common" Terminal Protocol: Identify the distinct black-colored common terminal screw. This terminal must be connected to either the Hot line or the Load.
■ Traveler Wire Management: Maintain consistent color-coding (Red/Black) for traveler wires across both 3-way switches to ensure straightforward troubleshooting.
■ Self-Grounding Clip: Includes an integrated self-grounding clip for rapid installation in metal enclosures, maintaining full CEC/UL safety compliance.

Frequently Asked Questions

Can I use a 3-way switch for single-pole applications?

Yes. By connecting to the common terminal and only one traveler terminal, a 3-way switch can function as a standard single-location switch.

Does it matter which way is "UP" during installation?

In a 3-way configuration, the On/Off state depends on the other switch in the circuit. There is no fixed "Up for On" in standardized 3-way setups.

Is it compatible with 12 AWG wiring?

Yes. The side-wiring terminals are designed to accommodate up to 12 AWG solid copper wire, although the 14AWG push-in ports are limited to 14AWG only.
