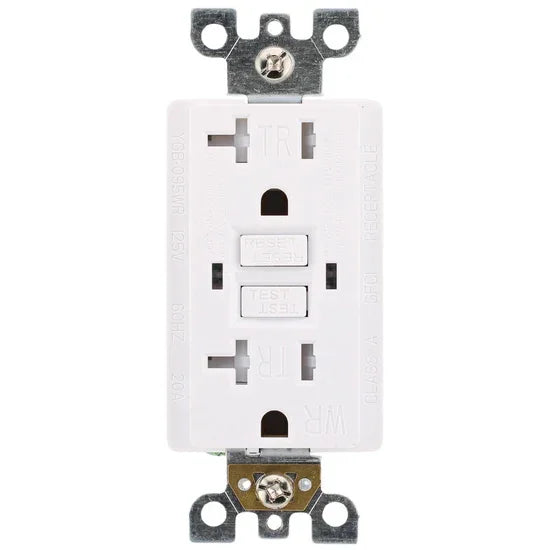

BBS Y20A 125V GFCI Outlet, Self-Testing, Tamper-Resistant & Weather-Resistant, LED Indicator, cULus Listed ｜YGB-095WR
Usually ships within 5-15 days, unless there is a special requirement or a very large purchase order.
Regular price
$15.90
Ask our AI Advisor
Instant answers · Trade pricing · Expert advice
Alex is thinking…
Continue this conversation
Get trade pricing · Ask follow-ups · Request a quote
→
Builder-focused advice
Canadian certified products
Volume pricing available
Couldn't load pickup availability
Product details
- Vendor BBS
Helpful documents
- Vendor BBS
Engineering Highlights
CONTINUOUS GROUND PROTECTION
Maintains active detection and trips instantly (< 25ms) on actual ground faults, even during the automated 40-second self-test cycles.
PREMIUM THERMOPLASTIC
Constructed with high-impact resistant thermoplastic and a rational structural design, ensuring superior mechanical strength and long-term chassis durability.
TWO-INDICATOR FEEDBACK
Intuitive status tracking: Steady Green (OK), 40s Red Blink (Testing), and Steady Red (End-of-Life warning) to prompt immediate device replacement.
Product Details
| Specification Item | Technical Data |
|---|---|
| Model Number | BBS-YGB-095WR (20A TR/WR Series) |
| Receptacle Rating | 20A / 125Vac (T-Slot Design) |
| Trip Threshold / Time | 5mA / < 25ms |
| Internal Metallurgy | Acid-Pickled Copper Alloy Terminals |
| Dielectric Withstand | 1500V (AC) |
| Force Calibration | Insert < 178N | Release < 67N | Retention > 13N |
| Flame Class / Standards | UL-94 V2 | UL498 / UL943 / CSA C22.2 No.144.1 |

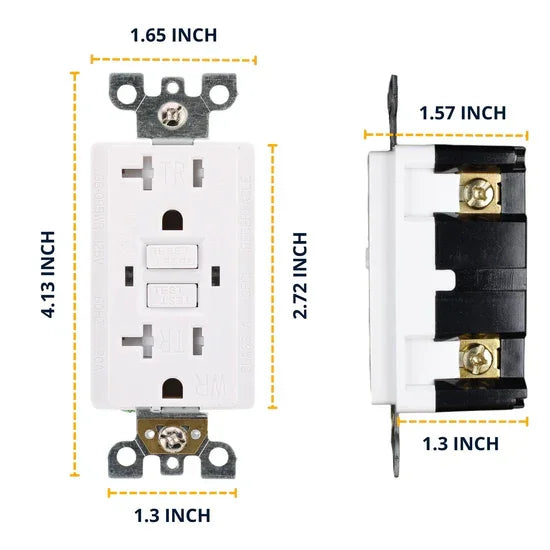

| Dimensions / Weight | 105 × 42.8 × 40.7 mm | 123g |
-
■
TAMPER-RESISTANT (TR) SAFETY BARRIER
Integrated TR shutters prevent the insertion of foreign objects into the energized slots, ensuring maximum child safety and preventing unauthorized access to the plate. -
■
WEATHER-RESISTANT (WR) CORROSION SHIELD
Specifically engineered with enhanced corrosion-resistant components to withstand moist, humid, and coastal environments common in Canadian outdoor applications.
Professional Application Guide
Commercial Kitchens & Pantries
20A T-slots accommodate high-draw commercial coffee machines and appliances. The WR-rating prevents failure in high-humidity food prep zones.
Industrial Workspaces & Garages
Built for the rigors of power tools and equipment. Continuous fault protection trips even during self-tests to ensure workshop safety.
Public & Outdoor Infrastructure
Mandatory for outdoor patios and common areas. High-impact thermoplastic chassis resists physical damage in high-traffic commercial zones.
Installation Engineering Checklist:
- ■ Circuit Verification: Must be installed on a 20A dedicated circuit with 12 AWG copper wire to support high-drain commercial loads.
- ■ Torque Specs: Ensure terminal screws are tightened to 14-16 lb-in to maintain stable contact under high-current thermal expansion cycles.
- ■ Self-Grounding Clip: Includes an integrated zinc-plated steel self-grounding clip for rapid installation in metal enclosures.
Frequently Asked Questions
How do the two indicator lights provide feedback?
Steady Green: Correct installation and normal operation. Red Flash (40s): Routine self-test logic in progress. Steady Red: End-of-life alert; protection is no longer guaranteed, replace immediately.
What is the benefit of the NEMA 5-20R T-Slot?
The T-slot design allows the outlet to accept both standard 15A household plugs and specialized 20A commercial appliance plugs, providing superior versatility for industrial zones.
Will the GFCI trip during a self-test cycle?
Yes. This BBS series is engineered with continuous ground fault protection, meaning it will detect and trip on an actual fault even while conducting its automatic 40-second self-diagnostic test.
National Trade & Contractor Desk
Supplying an industrial development, a hotel renovation, or a high-power workshop project? Access professional volume pricing and priority nationwide electrical logistics.
Electrical Distribution | Burnaby, BC
Serving Vancouver, Surrey, and all Canadian provinces. Phone: +1 604-356-7999
Frequently Asked Questions
Is the BBS YGB-095WR 20A 125V TR/WR GFCI Receptacle | High-Capacity | UL Listed certified for use in Canada?
Yes, the BBS YGB-095WR 20A 125V TR/WR GFCI Receptacle | High-Capacity | UL Listed is cETLus or CSA certified, ensuring it meets the strict electrical safety standards required by the Canadian Electrical Code for residential and commercial projects.
Do you offer wholesale pricing for electrical contractors?
Absolutely. As a dedicated building supply wholesaler in Burnaby, we provide tiered pricing for bulk orders. Please contact our trade desk for a custom quote on large volume electrical supplies.
What is the amperage and voltage rating for this device?
This device is rated for standard Canadian residential circuits (typically 15A or 20A, 125V). Please refer to the specific technical markings on the product or our spec sheet for exact ratings.
