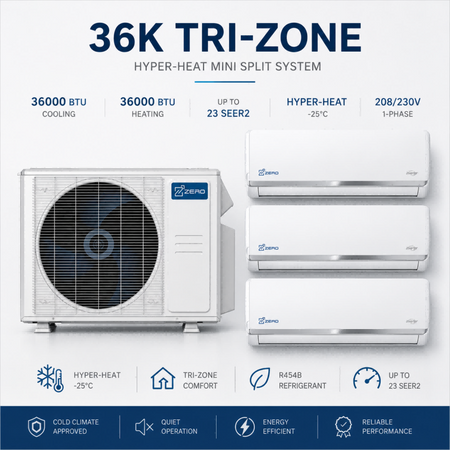

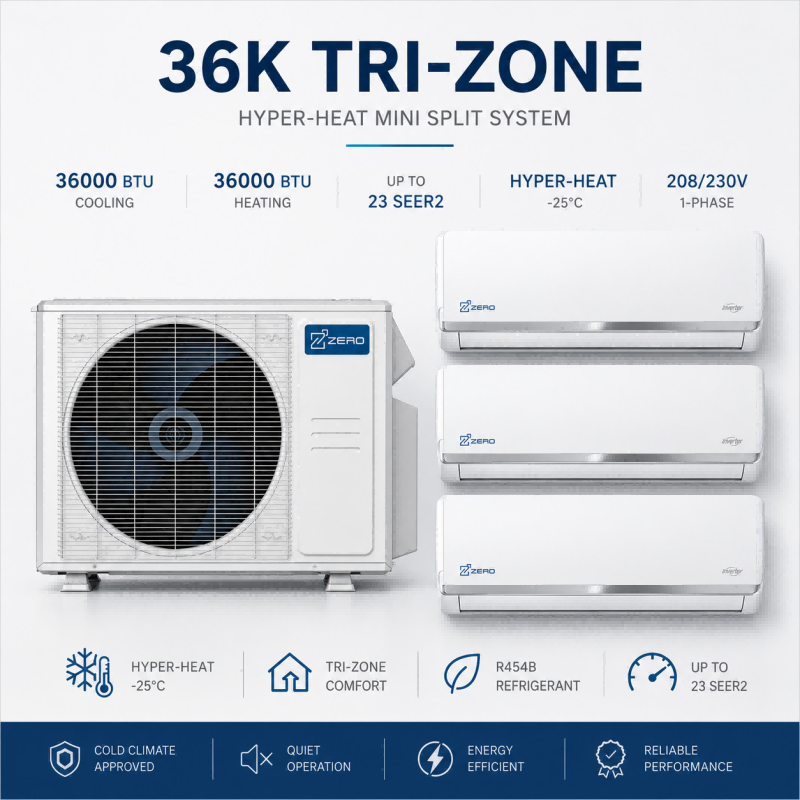

36K Multi-Zone Outdoor Unit with 3 × 12K Indoor High-Wall Units

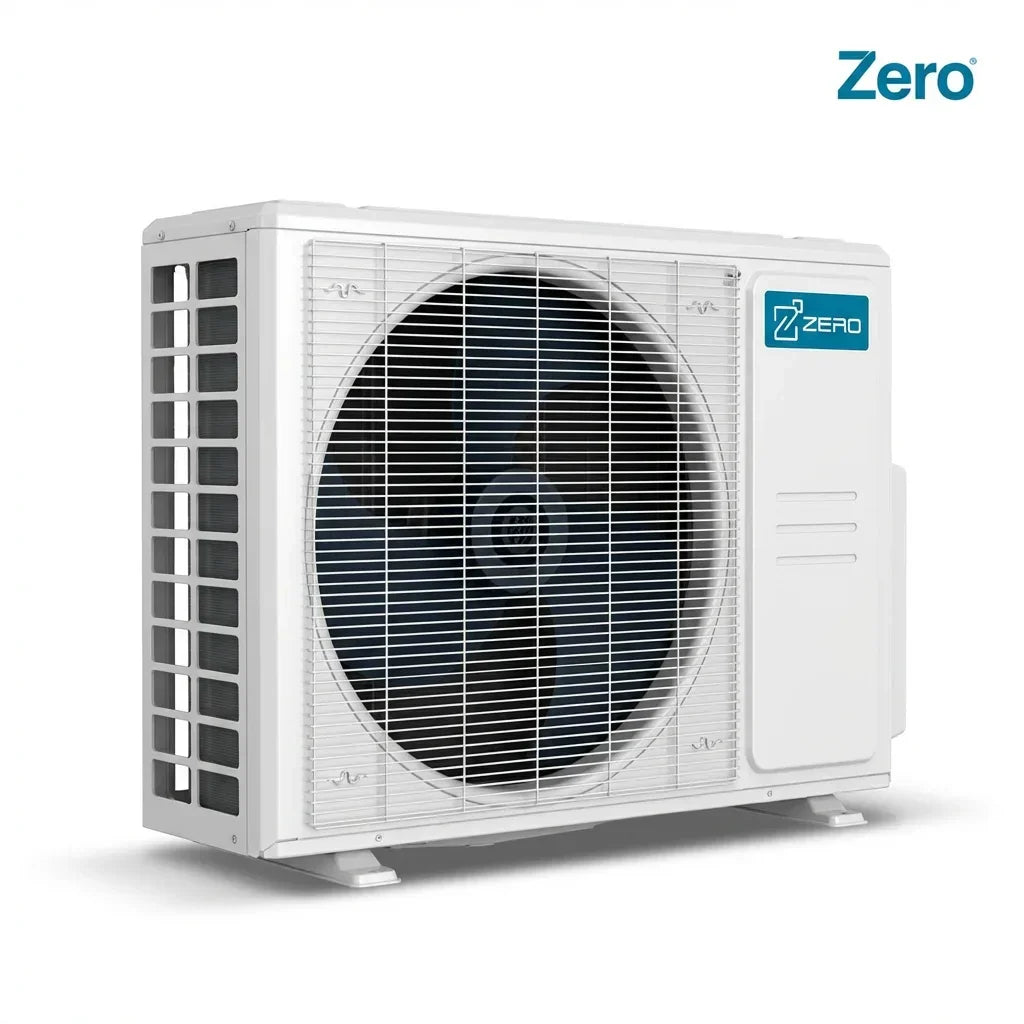

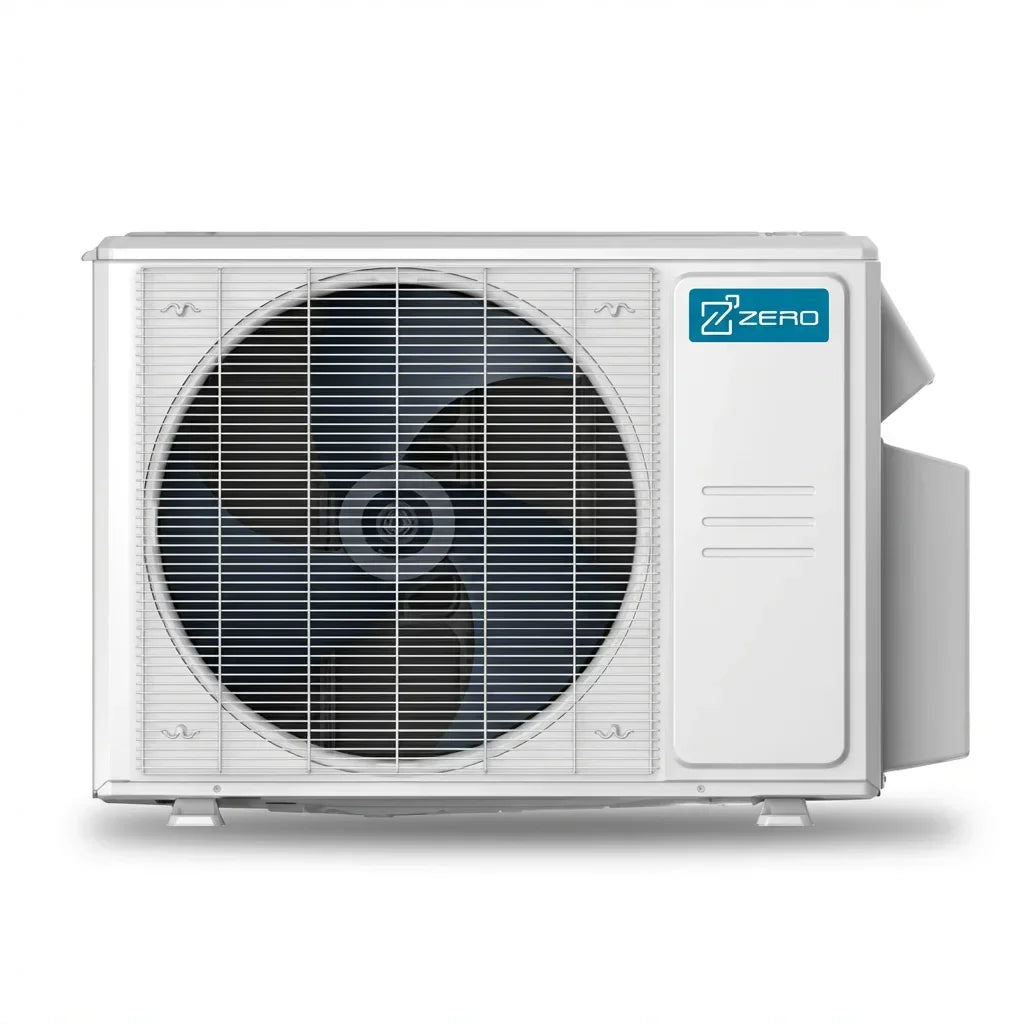

| Outdoor Unit | 1 × Z4SOV-36HDTB-US |
| Indoor Units | 3 × ZMSB-12HVT-USHHR2-I |
| System Type | Cooling & Heating Multi-Zone Heat Pump System |
Operates in heating mode down to -25°C outdoor ambient temperature.
Independent indoor units allow separate comfort control for multiple rooms.
Up to 23 SEER2 with matched high-efficiency indoor units.
Suitable for homes, townhouses, suites, renovations, and multi-room applications.
| Parameter | E-Star IDU | AHRI IDU |
|---|---|---|
| Model | Z4SOV-36HDTB-US | |
| Type | Cooling & Heating | |
| Power Supply | 208/230V ~ / 60Hz / 1 Phase | |
| Rated Cooling Capacity | 35,000 Btu/h | 37,000 Btu/h |
| Rated Heating Capacity @ 47°F / 8.33°C | 35,000 Btu/h | 37,000 Btu/h |
| SEER2 | 23 | 19 |
| COP2 @ 47°F / 8.33°C | 3.51 W/W | 3.21 W/W |
| COP2 @ 5°F / -15°C | 2.0 W/W | 1.8 W/W |
| Indoor Operating Temperature | 16°C ~ 30°C | |
| Outdoor Operating Temperature - Cooling | -15°C ~ 55°C / 5°F ~ 131°F | |
| Outdoor Operating Temperature - Heating | -25°C ~ 30°C / -13°F ~ 86°F | |
| Indoor Ambient Temperature | 61°F ~ 86°F | |
| Parameter | ZMSB-12HVT-USHHR2-I |
|---|---|
| Model | ZMSB-12HVT-USHHR2-I |
| Type | Cooling & Heating |
| Power Supply | 208/230V ~ / 60Hz / 1 Phase |
| Rated Cooling Capacity | 12,000 Btu/h |
| Rated Heating Capacity | 12,000 Btu/h |
| Suitable Area | Up to 550 sq.ft per indoor unit |
| Indoor Ambient Temperature - Cooling / Heating °C | ≥17°C / ≤30°C |
| Indoor Ambient Temperature - Cooling / Heating °F | 62°F ~ 89°F / 32°F ~ 86°F |
Available through British Building Supplies with project quotation support, technical documentation, and freight coordination across Canada.
