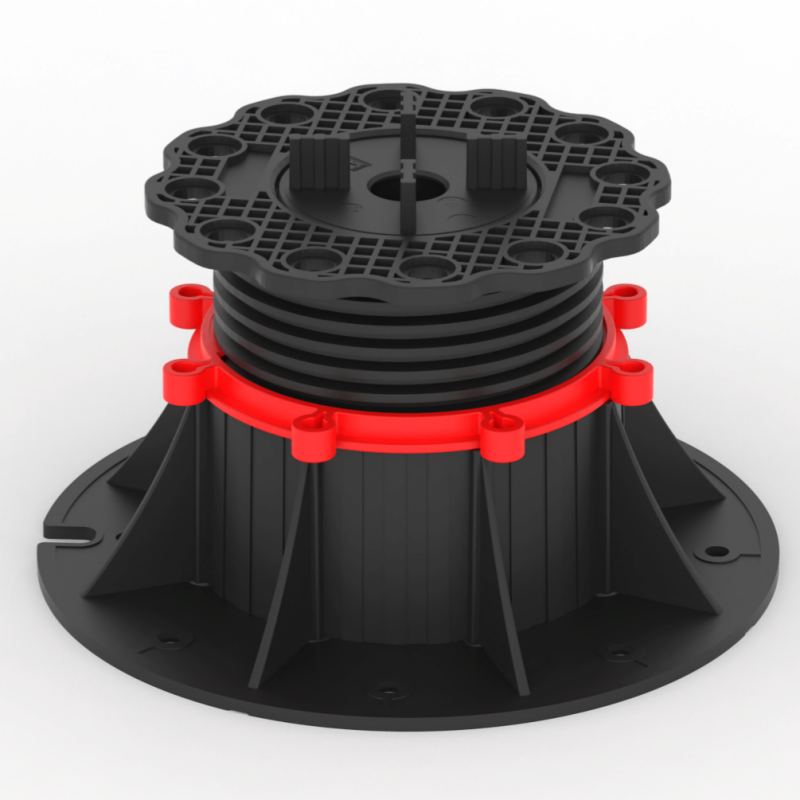

BBS B-4 series adjustable paver pedestal height range 2.36 to 4.13 inches for architectural paving
BBS

BBS B-4 Adjustable Paver Pedestal | 2.36"-4.13" (60-105mm) | 48-Unit Bulk Pack ($7.29/PC)

En stock
Aucun commentaire
Généralement expédié sous 24 heures
$349.90
📄 Need a quote instead? Add items to cart, then use the Request a Quote for This Cart button at checkout.
Alex — BBS Advisor
Ask our AI Advisor
Instant answers · Trade pricing · Expert advice
Alex is thinking…
💬
Continue this conversation Get trade pricing · Ask follow-ups · Request a quote
→
🏗️ Builder-focused advice
🍁 Canadian certified products
📦 Volume pricing available
Détails du produit
  • Vendeur BBS
Documents utiles
  • Vendeur BBS

Souhaitez-vous faire une demande d'achat en gros ?

Demander un devis

S'inscrire en tant que membre

Description Informations sur l'expédition Critiques (0)

Engineering Highlights

EXTENDED CLEARANCE CONTROL

Adjustable height range from 2.36" to 4.13" (60mm - 105mm). Engineered for high-profile paving projects that require significant elevation to clear large pipes or align with high thresholds.

SUSTAINABLE ARCHITECTURE

Molded from 90% high-density recycled Polypropylene. UV-stabilized, 100% recyclable, and built to withstand the harshest Canadian freeze-thaw cycles without structural compromise.

Technical Specifications

Specification Item Technical Data
Model Number BBS B-4 Series
Height Adjustment Range 2.36" to 4.13" (60 mm - 105 mm)
Material Base D-Base Professional Paving Series
Material Configuration 90% Recycled Polypropylene (100% Recyclable)
Standard Inclusions 1x Spacer Tab and 1x Rubber Shim per unit
Quantity per Carton 48 Units
Package Volume 0.126 CBM (70 x 37.5 x 48 cm)
Logistics Weight 20.00 KGS (Gross Weight)

Professional Architectural Elevation

The Smartest High-Profile Support for Premium Paver Systems.

The BBS B-4 Series Adjustable Pedestal is designed to deliver unmatched strength and stability for high-clearance architectural paving. With an adjustable height range of up to 4.13 inches (105mm), the B-4 provides the necessary elevation to conceal electrical conduits, plumbing services, or to align outdoor decking with high interior floor levels. Meticulously engineered from 90% recycled polypropylene, it ensures exceptional structural load-bearing performance while promoting sustainable "Green Building" practices. The integrated D-base and versatile spacer tabs allow for rapid, precision leveling on rooftops, terraces, and commercial balconies across Canada, providing a self-draining and rattle-free finish backed by a 20-year limited warranty.


Field Engineering Guide

High Clearance Workflow

Ideal for rooftop decks that require significant elevation to clear drain heads or architectural features. Reduces installation labor by 50% vs traditional concrete sleepers.

Self-Draining Cavity

Creates a ventilated 60-105mm architectural cavity that prevents moisture accumulation, protecting waterproofing membranes and allowing for rapid water runoff.

Mandatory Spacing

Calculated at approximately 1.4 pieces per every 24"x24" tile. Mandatory support every 24 inches ensures even load distribution for heavy concrete or stone pavers.

National Trade & Contractor Desk

Ordering for a commercial rooftop plaza, luxury multi-family development, or large-scale municipal landscaping project? Access specialized project quoting, technical submittals, and B2B volume pricing from our Burnaby center.

Hardscape & Decking Systems | Burnaby, BC | Vancouver • Toronto • Calgary. Phone: +1 604-356-7999
