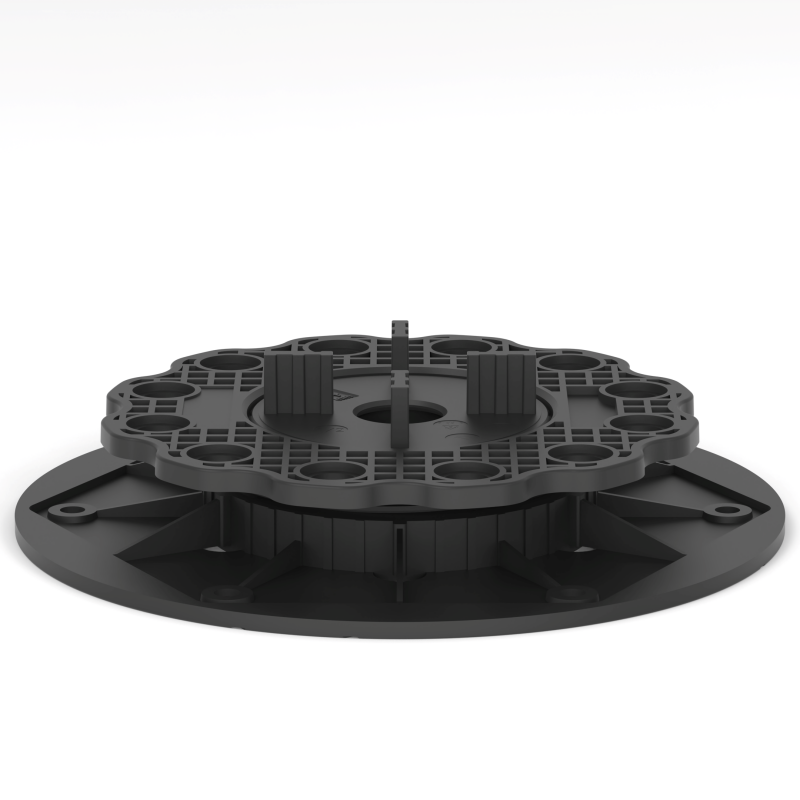

BBS B-1 series adjustable paving pedestal for low clearance porcelain and stone tile support

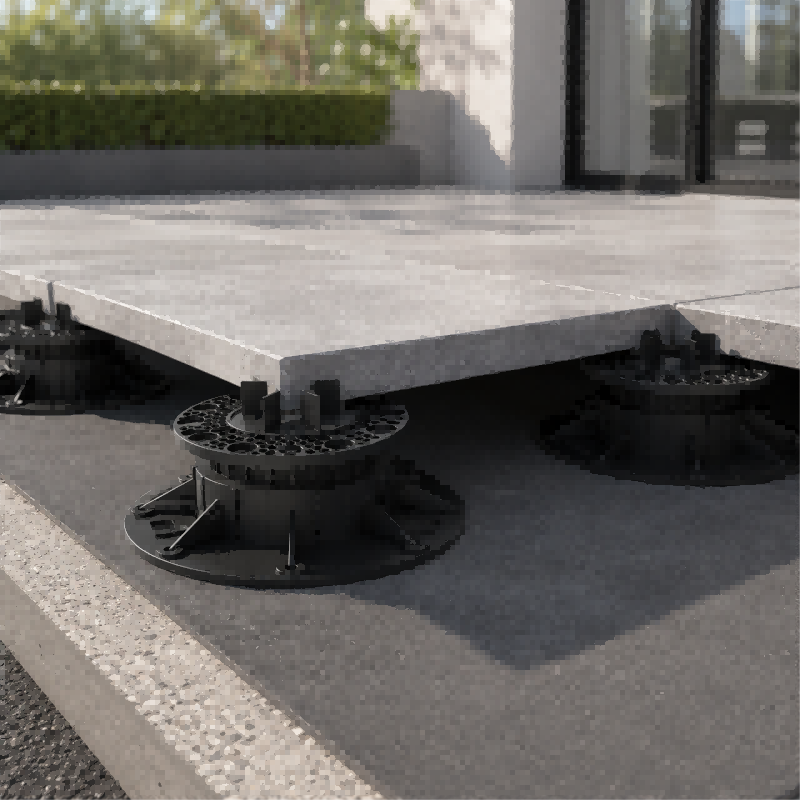

Adjustable pedestal system B-1 supporting 24x24 inch pavers on a rooftop deck installation

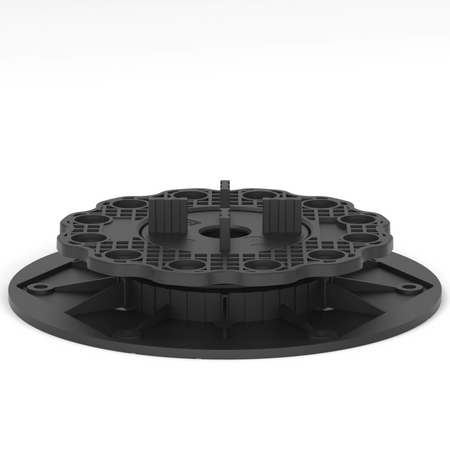

BBS B-1 series adjustable paving pedestal for low clearance porcelain and stone tile support
Adjustable pedestal system B-1 supporting 24x24 inch pavers on a rooftop deck installation
BBS

BBS B-1 Adjustable Paver Pedestal | 0.79"-1.14" (20-29mm)

En stock
Aucun commentaire
Généralement expédié sous 24 heures
$4.36
📄 Need a quote instead? Add items to cart, then use the Request a Quote for This Cart button at checkout.
Alex — BBS Advisor
Ask our AI Advisor
Instant answers · Trade pricing · Expert advice
Alex is thinking…
💬
Continue this conversation Get trade pricing · Ask follow-ups · Request a quote
→
🏗️ Builder-focused advice
🍁 Canadian certified products
📦 Volume pricing available
Détails du produit
  • Vendeur BBS
Documents utiles
  • Vendeur BBS

Souhaitez-vous faire une demande d'achat en gros ?

Demander un devis

S'inscrire en tant que membre

Description Informations sur l'expédition Critiques (0)

Engineering Highlights

ULTRA-LOW ADJUSTABILITY

Engineered for tight thresholds and low-clearance applications. Offers a precision height adjustment range of 0.79" to 1.14" (20mm - 29mm) for perfectly level surfaces.

90% RECYCLED COMPOSITION

Manufactured from 90% high-density recycled polypropylene and 100% recyclable. Meets LEED requirements for sustainable building and environmental stewardship.

Technical Specifications

Specification Item Technical Data
Model Number BBS B-1 Series
Height Adjustment Range 0.79" to 1.14" (20 mm - 29 mm)
Material Base 90% Recycled Polypropylene (100% Recyclable)
Standard Configuration Includes 1x Spacer and 1x Rubber Gasket per unit
Max Support Grid Must be placed every 24 inches
Estimated Usage Approx. 1.4 units per 24" x 24" deck section
Package Quantity 160 Units per Carton
Logistics Weight 7.00 KGS (Gross Weight)

Professional Architectural Paving Standard

The Smartest, Strongest, and Greenest Support in the Market.

The BBS B-1 Series represents the ultimate engineering solution for porcelain, stone, and concrete paving installations. Specifically designed for low-clearance projects, this system eliminates the need for messy sand or gravel beds, providing a self-draining and ventilated architectural surface. Each unit is constructed from premium recycled high-density polypropylene, offering exceptional structural integrity while supporting sustainable building practices across Canada. With its intuitive snap-on integration for spacers and slope correctors, the B-1 system significantly reduces labor costs while ensuring a flawless, professional-grade finish for luxury rooftops, balconies, and patio decks.


Installation & Logistics Guide

Rapid Site Assembly

Designed for efficient workflow. Easily integrates with slope correctors and various spacer sizes to compensate for subfloor irregularities up to 5%.

Calculated Coverage

For a standard 24"x24" paving grid, estimate 1.4 units per section. Ensure center support is provided for larger spans over 24 inches.

BC Local Inventory

Bulk inventory maintained in Burnaby, BC. Optimized for rapid fulfillment to Vancouver, Toronto, and Calgary construction sites.

Carton Quantity: 160 Units Dimensions: 70 x 37.5 x 48 cm
Volume: 0.126 CBM Gross Weight: 7.00 KGS
