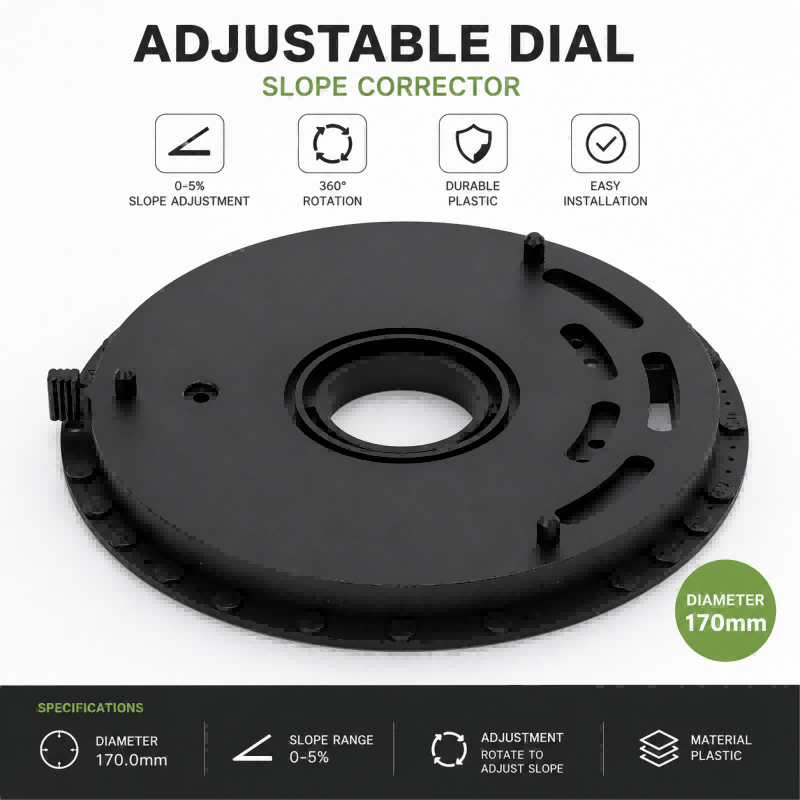

BBS adjustable slope corrector dial for paver pedestal system with 0-5 percent slope compensation
British Building Supplies Ltd

BBS Adjustable Slope Corrector Dial | 0-5% Compensation | 170mm Diameter

En stock
Aucun commentaire
Généralement expédié sous 24 heures
$2.53
📄 Need a quote instead? Add items to cart, then use the Request a Quote for This Cart button at checkout.
Alex — BBS Advisor
Ask our AI Advisor
Instant answers · Trade pricing · Expert advice
Alex is thinking…
💬
Continue this conversation Get trade pricing · Ask follow-ups · Request a quote
→
🏗️ Builder-focused advice
🍁 Canadian certified products
📦 Volume pricing available
Détails du produit
  • Vendeur British Building Supplies Ltd
Documents utiles
  • Vendeur British Building Supplies Ltd

Souhaitez-vous faire une demande d'achat en gros ?

Demander un devis

S'inscrire en tant que membre

Description Informations sur l'expédition Critiques (0)

Engineering Highlights

0-5% SLOPE COMPENSATION

Engineered to compensate for subfloor gradients from 0% to 5%. Ensures a perfectly level architectural surface for pavers while maintaining critical drainage slopes underneath.

ROTARY DIAL CONTROL

Simple rotary mechanism allows for rapid, tool-free slope adjustment on-site. Precision markings ensure consistent results across large-scale paving grids.

HEAVY-DUTY POLYMER

Constructed from high-impact, UV-stabilized industrial plastic. Designed to integrate seamlessly with BBS B-series pedestals for maximum load distribution.

Technical Specifications

Specification Item Technical Data
Product Name BBS Adjustable Slope Corrector Dial
Compensation Range 0% - 5% (Continuous Adjustment)
Diameter 170.0 mm (Architectural Standard)
Material Configuration High-Impact UV-Stabilized Plastic
Adjustment Method Manual Rotation / Rotary Dial
Compatibility Optimized for BBS B-1, B-2, B-3, and B-4 Pedestals
Application Type Rooftop Decks, Balconies, and Exterior Paving

The Intelligent Leveling Companion

Achieve Flawless Leveling on Any Slope.

The BBS Adjustable Slope Corrector Dial is a critical component for professional paving and decking installations. Designed to work in perfect synchronization with our B-series pedestals, this 170mm circular dial provides a robust solution for compensating subfloor gradients up to 5%. By simply rotating the dial, contractors can achieve millimeter-perfect horizontal alignment across porcelain, stone, or concrete tile surfaces. This eliminates the need for complex sub-surface shimming while ensuring efficient water runoff and structural stability. Built from weather-resistant industrial polymers, the BBS slope corrector is the preferred choice for Vancouver's demanding rooftop and balcony projects.


Field Engineering Guide

Gradient Analysis

Measure the subfloor slope prior to installation. Rotate the dial to the corresponding percentage marker (up to 5%) to create a level plane for the pedestal base.

System Integration

Fits securely at the base or head of BBS pedestals. The 170mm diameter ensures an even distribution of vertical loads across the subfloor membrane.

Site Versatility

Ideal for resolving threshold misalignments and managing water drainage paths on multi-unit balconies and commercial rooftop plazas.
